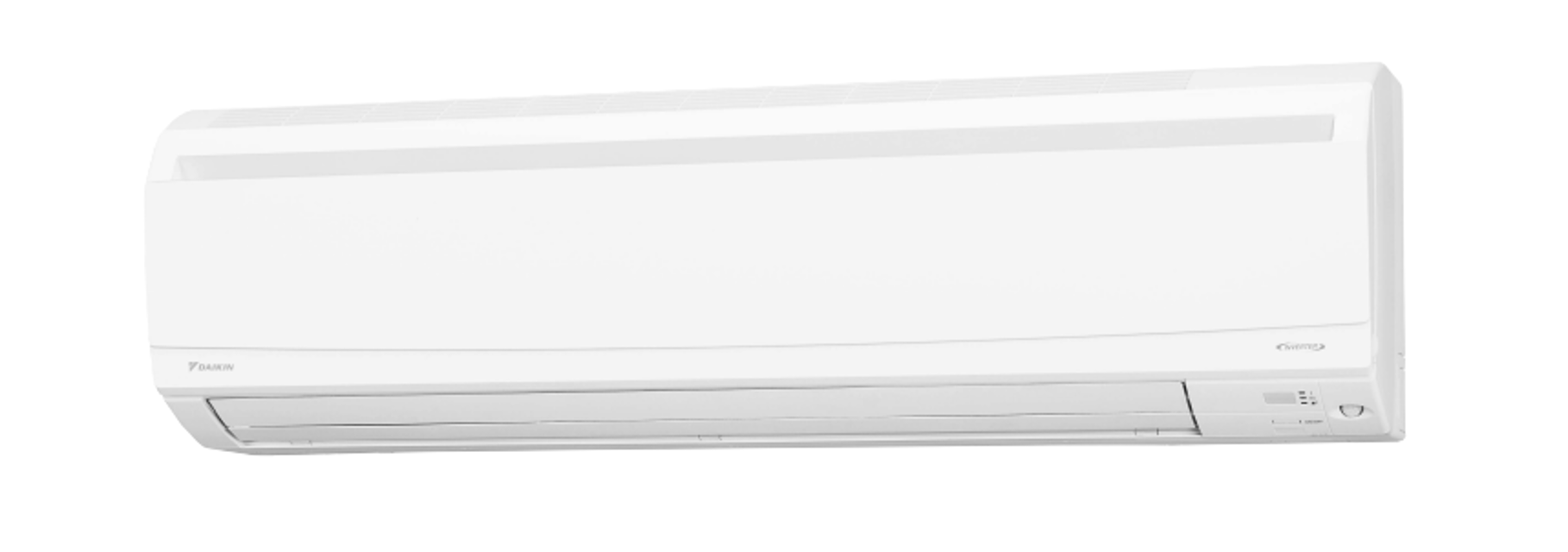

Daikin Indoor Unit Cooling Only Air Conditioner FTKS80MVLT

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS80MVLT

Integrate maintenance plans directly into your work orders in MaintainX.

Front Grille Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Service cover removed

Number of screws removed from the service cover

Front grille removed

Number of screws removed from the front grille

Number of screw covers removed with a flat screwdriver

Number of lower screws removed

Number of front grille fixtures removed

4 hooks on the top of the front grille unfastened

Run this procedure

Vertical Blade ASSY Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Unfasten the 2 hooks of each vertical blade ASSY

Remove the 3 vertical blade ASSYs

When reassembling, connect the 3 vertical blade ASSYs. Fasten the hooks at the connecting points.

Each vertical blade ASSY is united with a drain pan ASSY

Sign off on the Vertical Blade ASSY Removal

Run this procedure

Horizontal Blade Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

1) Release the right shaft of the horizontal blade (large).

2) Release the left shaft.

3) Release the inner right shaft.

4) Release the inner left shaft.

5) Remove the horizontal blade (large).

6) Remove the horizontal blade (small) in the same way.

2. Remove the air outlet ASSYs.

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw

Remove the drip proof plate from the indoor heat exchanger

Remove the screw and release the earth/ground wire

Pull out the indoor heat exchanger thermistor

Remove the screw, and then the wire fixture

Remove the 4 screws on the terminal strip and disconnect the connecting wire

Disconnect the connector [S1] and release the harness from the hook

Release the ferrite core

Run this procedure

Fan Motor / Fan Rotor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Removed the 2 screws and the right side plate

Removed the screw of the fan motor fixing plate (upper)

Removed the fan motor fixing plate (upper)

Loosened the screw of the fan rotor

Removed the fan motor

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Inserted the fan motor allowing for approx. 5 mm (0.2 inch) of play

Tightened the fan rotor screw until it stops. Then gave the screw one more turn

Run this procedure
