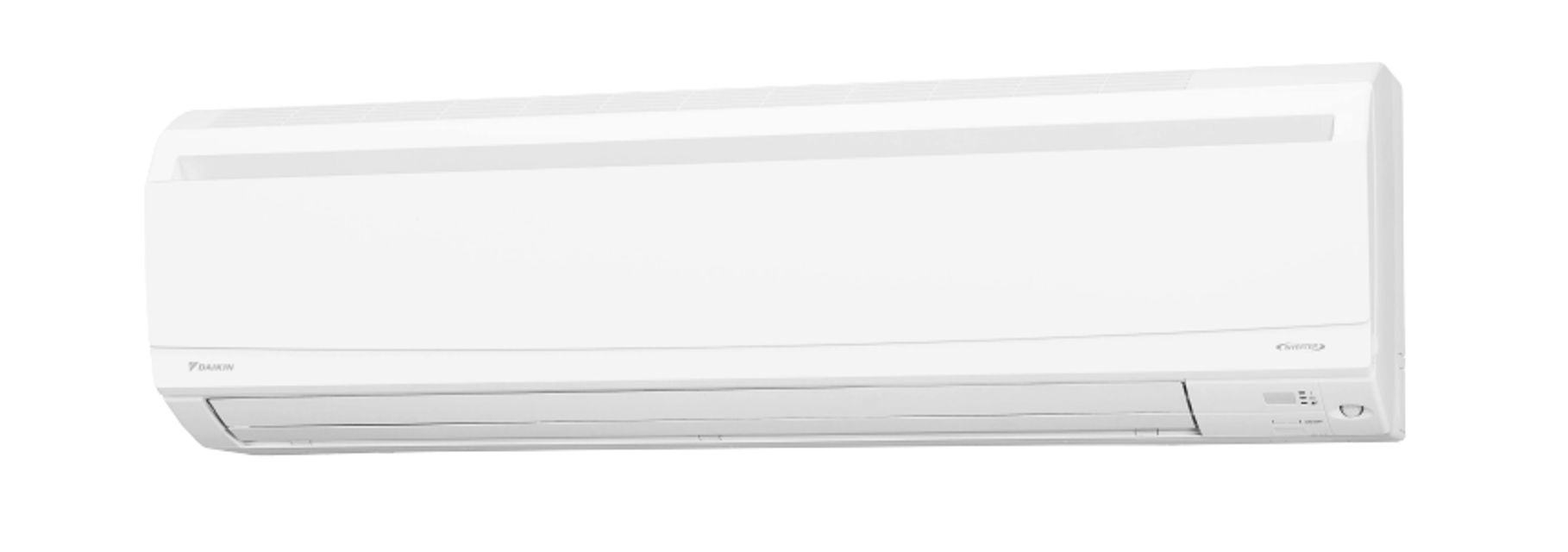

Daikin Indoor Unit Cooling Only Air Conditioner FTKS71JVMG

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Screw covers removed with a flat screwdriver

Hooks on the top of the front grille unfastened

Upper part of the front grille pulled out and lower part lifted up

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Loosen the screw of the fan motor from the air outlet.

Remove the screw of the fan motor fixing plate (upper).

Unfasten the hook at the front and remove the fan motor fixing plate (upper).

Release the harness from the hook, and remove the screw of the fan motor fixing plate (lower).

Remove the fan motor fixing plate (lower).

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Insert the fan motor allowing for approx. 5 mm (0.2 inch) of play.

Tighten the fan rotor screw until it stops. Then give the screw one more turn.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Caution: When reassembling, do not confuse the installing order of the 2 motors for horizontal blades and the colors of the connectors.

If you set the connectors or motors opposite, the horizontal blades do not move smoothly or noise may be heard

1. Remove the swing motors for horizontal blades.

1) Hold the indoor unit up with a piece of wood.

2) Remove the screw at the rear of the indoor unit.

5) Remove the swing motor unit.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

In pump-down work, be sure to stop the compressor before disconnecting the refrigerant pipe. If the refrigerant pipe is disconnected with the compressor operating and the stop valve open, air may be sucked in and may generate an over-pressure in refrigeration cycle, thus resulting in pipe rupture or accidental injury.

When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or wrap the indoor heat exchanger with cloths. (You may be injured by the fins.)

Caution: Be sure to conduct pump down operation before disassembling the refrigerant pipe.

If the refrigerant leaks, repair the spot of leaking, then collect all refrigerant from the unit. After conducting vacuum drying, recharge proper amount of refrigerant.

From the viewpoint of global environmental protection, make sure to use a vacuum pump for air purging.

Pull out and disconnect the drain hose.

Wrap the open ends of the drain hose with plastic sheets to prevent water dripping.

Unscrew the flare nuts for gas piping and liquid piping.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Unfasten the 2 hooks of each vertical blade ASSY.

Remove the 3 vertical blade ASSYs.

When reassembling, connect the 3 vertical blade ASSYs. Fasten the hooks at the connecting points.

Each vertical blade ASSY is united with a drain pan ASSY.

Sign off on the Vertical Blade ASSY Removal
