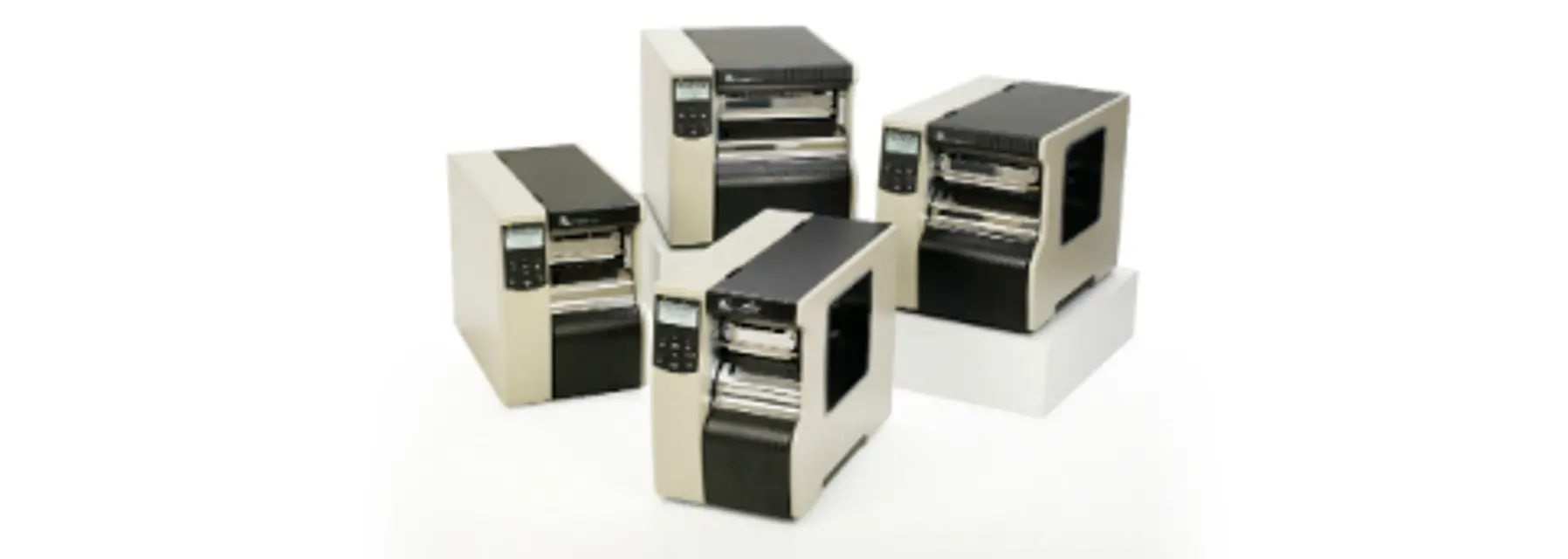

Zebra Printer 110XiIII

Create an account to install this asset package.

Maintenance Plans for Zebra Printer Model 110XiIII

Integrate maintenance plans directly into your work orders in MaintainX.

Black Mark Sensor Cleaning

Warning: Ensure the machine is turned off before starting the cleaning process

CLEAN HEAD NOW message appears?

Select the print mode

Air blow cleaning performed?

Sign off on the sensor cleaning

Run this procedure

Transmissive (Media) Sensor Cleaning

Warning: Ensure the machine is turned off and unplugged before starting the cleaning process.

CLEAN HEAD NOW message appears?

Select the print mode

Did you air blow the sensors?

Did you brush or vacuum any accumulated paper lint and dust off the sensors?

Sign off on the sensor cleaning

Run this procedure

Cutter Cleaning

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Is the printer turned off?

Is the power cord unplugged?

Clean the stationary cutter blade with a swab and solvent.

Are there any label fragments and adhesive left after cleaning?

If cleaning does not remove label fragments and adhesive, contact an authorized service technician.

Sign off on the cutter cleaning

Run this procedure

Ribbon Path Cleaning

Warning: Ensure the printer is turned off and unplugged before cleaning.

CLEAN HEAD NOW message appears?

Select the print mode

Direct Thermal Print Mode: Have you used every roll of labels or 500 ft (150 m) of fanfold labels?

Thermal Transfer Print Mode: Have you used every roll (1500 ft or 450 m) of ribbon?

Upload a photo of the cleaned ribbon path

Sign off on the ribbon path cleaning

Run this procedure

Printhead Cleaning

Clean with solvent.

Perform these procedures at the following times:

• When CLEAN HEAD NOW appears.

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

If print quality does not improve after you perform this procedure, clean the printhead with Save-a-Printhead cleaning film. This specially coated material removes contamination buildup without damaging the printhead. Call your authorized Zebra reseller or distributor for more information.

Cleaning intervals are as follows, based on the printhead resolution:

For 203 and 300 dpi printers Clean the printhead after every roll (1500 feet or 450 m) of thermal transfer ribbon or after every roll (500 feet or 150 m) of direct thermal labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

For 600 dpi printers Clean the printhead after each roll (500 feet or 150 m) of labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

Run this procedure
