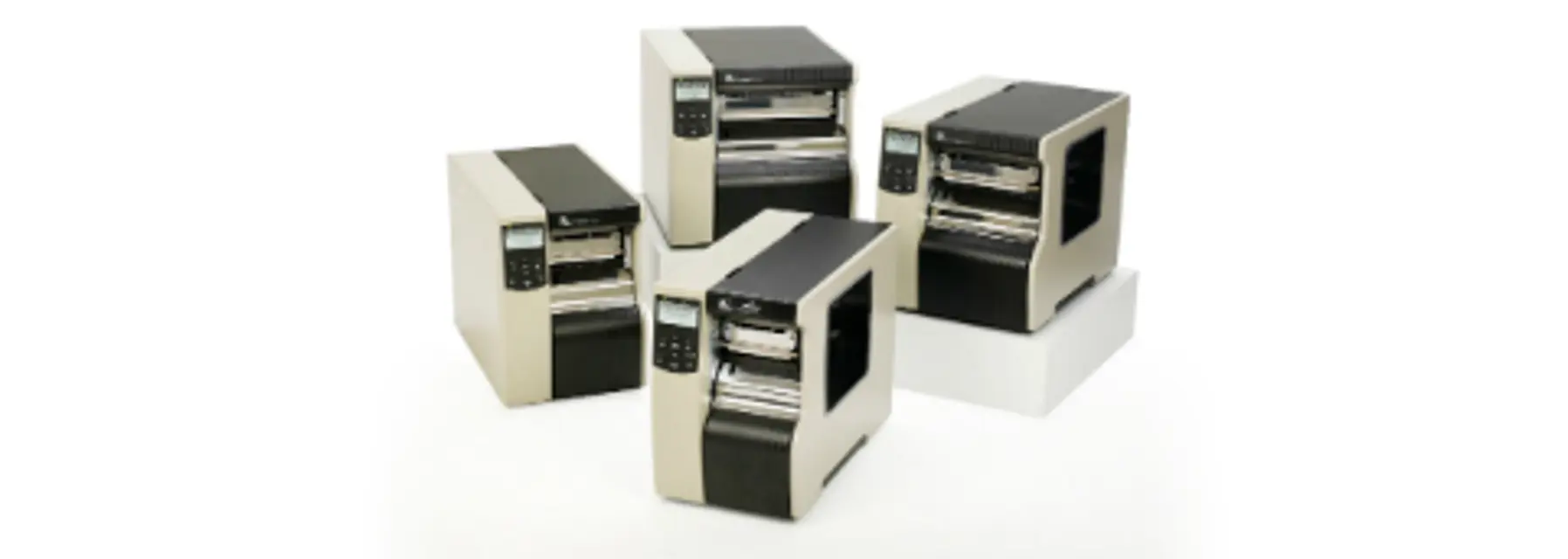

Zebra Printer 90XiIIIPlus

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

Clean the snap plate when label adhesive or a label is stuck to the underside.

The type of snap plate in your printer will depend on whether the printer is standard or RFID-ready/enabled. Figure 27 shows the snap plate in a standard non-RFID printer.

To clean the snap plate in a standard printer, complete these steps:

1. Insert a small-blade screwdriver or similar tool into the loop on the left side of the snap plate.

2. Gently lift the left side of the snap plate.

3. Insert a small-blade screwdriver or similar tool into the loop on the right side of the snap plate.

4. Gently lift the right side of the snap plate.

5. Remove the snap plate from the printer.

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Clean the stationary cutter blade with a swab and solvent.

Did cleaning remove label fragments and adhesive?

If cleaning did not remove label fragments and adhesive, contact an authorized service technician.

Sign off on the cutter cleaning

Warning: Ensure the machine is turned off and unplugged before cleaning.

CLEAN HEAD NOW message appears?

Direct Thermal Print Mode: Cleaned after every roll of labels or 500 ft of fanfold labels?

Thermal Transfer Print Mode: Cleaned after every roll (1500 ft or 450 m) of ribbon?

Upload a photo of the cleaned ribbon path

Sign off on the ribbon path cleaning

Warning: Ensure the machine is turned off and unplugged before cleaning.

CLEAN HEAD NOW message appears?

Did you brush or vacuum any accumulated paper lint and dust off the sensors?

Sign off on the sensor cleaning
