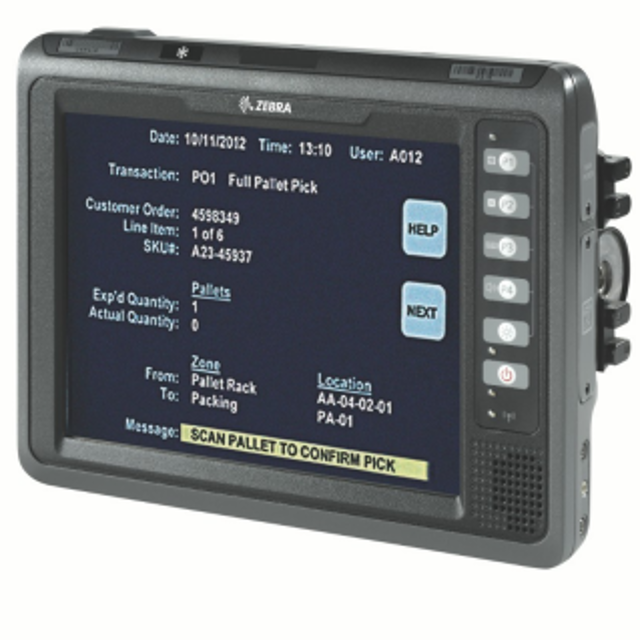

Zebra Vehicle Computer VC70N0

CAUTION Use ESD precautions when installing the backup battery.

Disconnect the power cable from the VC70. The VC70 will continue to work on backup battery power.

Perform cold boot. The backup battery will stop powering the VC70.

Open the four screws securing the Backup Battery door on the back of the vehicle computer and remove the door.

Open the four screws securing the Backup Battery and disconnect the Backup Battery connector.

Carefully pull the Backup Battery out of the computer.

Place the new backup battery into the well.

Connect the Backup Battery connector to the connector inside the Backup Battery well.

Secure the battery into location using four screws.

Warning: Ensure that the VC70 is compatible with the power cable installed on the truck.

Screen of the vehicle computer is not scratched

Vehicle computer is not exposed to rain or moisture for an extended period of time

Vehicle computer is not subjected to strong impact

Vehicle computer is protected from temperature extremes

Vehicle computer is not stored or used in any location that is extremely dusty, damp, or wet

Vehicle computer is cleaned with a soft lens cloth

Enter the torque of the nuts and bolts

Do you have spare screws for changing desiccant bags and SD cards?

Warning: Do not use any sharp tool to pull the dessicant bag out of the VC70. Failure to comply may cause tear of the bag and damage to the VC70.

Did you remove the old dessicant bag using the attached tab?

Did you open the new desiccant package and remove the desiccant bag?

Did you fold the four corners of the bag under to form a pillow?

Did you place the desiccant bag in the desiccant well?

Caution: Be sure to torque the screws to seal the device properly. Otherwise, sealing can be compromised.

Did you secure the door to the housing using the two captive screws?

Enter the torque applied to the screws (in kgf.cm)

Sign off on the desiccant bag replacement
