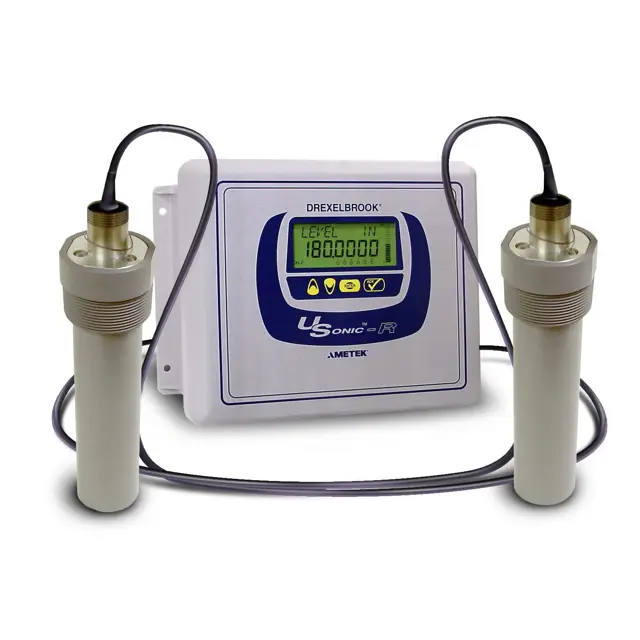

Ametek Ultrasonic Level Transmitter USR-1111-0000-0150

8.3 Analog Output Adjustment; Trimming theanalog output to match a loop meter (This functionis factory calibrated, and generally does not have to be adjusted)

1. Measure the loop current (mA dc) on the desired analog output channel.

2. Menu 4.0n.07 will force the loop current to 4.00mA. 3. Using the keypad, enter the actual loop current indicated on your device (multimeter)

4. The receiver will recalibrate the analog output to match your entered value.

1. Measure the loop current (mA dc) on the desired analog output channel.

2. Menu 4.0n.08 will force the loop current to 20.00mA.

3. Using the keypad, enter the actual loop current indicated on your device (multimeter)

Warning: This calibration requires trained personnel!

Enter the correct actual distance from the Sensing Element face to level

Did the USonic-R accept the data point?

Note: The USonic-R will use this data point as reference on all future readings, unless 'Restore Factory Settings' is selected.

Sign off on the field calibration
