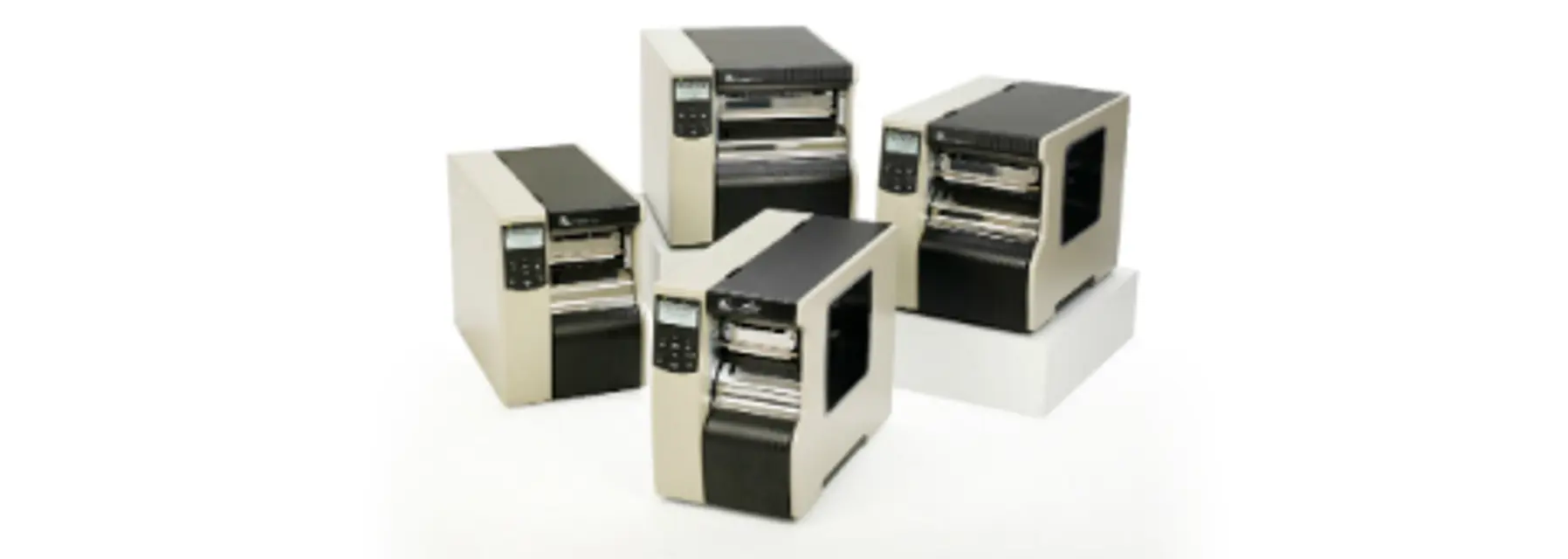

Zebra Printer 140XiIIIPlus

Create an account to install this asset package.

Maintenance Plans for Zebra Printer Model 140XiIIIPlus

Integrate maintenance plans directly into your work orders in MaintainX.

Fuse Replacement

Warning: Turn the AC power switch off (O) and remove the power cord before performing this procedure.

The printer uses a metric-style fuse (5 × 20 mm IEC) rated at F5A, 250 V.

The AC power entry module comes with two approved fuses in the fuse holder: one is in-circuit, and the second is provided as a spare.

The end caps of the fuse must bear the certification mark of a known international safety organization.

Use a small-blade screwdriver or similar tool to remove the fuse holder.

Remove the faulty fuse and install a new fuse in the in-circuit position.

Important: If you use the spare fuse, be sure to order a replacement fuse from an authorized Zebra distributor. The spare fuse should be the exact type and rating as the original in-circuit fuse.

Snap the fuse holder back into the AC power entry module.

Reconnect the power cord, and turn the printer on (I).

Run this procedure

Ribbon Path Cleaning

Clean by Air blow.

Perform these procedures at the following times:

• When CLEAN HEAD NOW appears.

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

Run this procedure

Black Mark Sensor Cleaning

Warning: Ensure the machine is turned off before starting the cleaning process.

CLEAN HEAD NOW message appears?

Select the print mode

Air blow cleaning performed?

Sign off on the sensor cleaning

Run this procedure

Media Path Cleaning

Clean with solvent.

Perform these procedures at the following times:

• When CLEAN HEAD NOW appears.

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

Run this procedure

Snap Plate Cleaning

Clean with solvent.

Clean the snap plate when label adhesive or a label is stuck to the underside.

The type of snap plate in your printer will depend on whether the printer is standard or RFID-ready/enabled. Figure 27 shows the snap plate in a standard non-RFID printer.

To clean the snap plate in a standard printer, complete these steps:

1. Insert a small-blade screwdriver or similar tool into the loop on the left side of the snap plate.

2. Gently lift the left side of the snap plate.

3. Insert a small-blade screwdriver or similar tool into the loop on the right side of the snap plate.

4. Gently lift the right side of the snap plate.

5. Remove the snap plate from the printer.

Run this procedure
