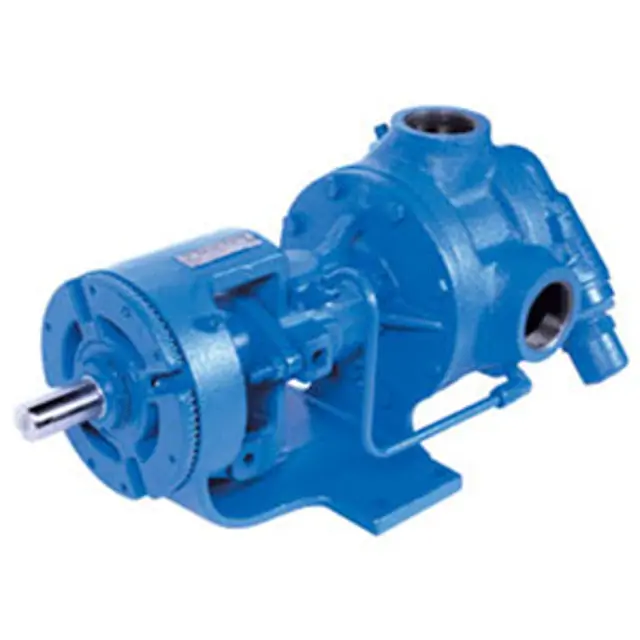

Viking Pump K124A

Need answers fast?
Explore the manual using AI.

Viking Pump K124A
Viking Pump K124A

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Viking Pump K124A

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Viking Pump K124A

Viking Pump K124A

Create an account to install this asset package.

Maintenance Plans for Viking Pump Model K124A

Integrate maintenance plans directly into your work orders in MaintainX.

Thrust Bearing Adjustment

Check mark

Safety Precautions

Check mark

Ensure any pressure in the chamber has been completely vented through the suction or discharge lines.

Check mark

Ensure the driving means has been “locked out” or made non-operational.

Check mark

Identify the liquid the pump has been handling and understand the necessary safety precautions.

Check mark

Obtain and review the material safety data sheet (MSDS) for the liquid.

Check mark

Thrust Bearing Adjustment

Check mark

Loosen the two set screws in the outer face of the bearing housing and rotate the bearing housing clockwise until it cannot be turned anymore.

Check mark

Make a mark on the outside diameter of the bearing housing and a corresponding mark on the pump bracket.

Check mark

Make another mark on the pump bracket as per 'Table 4' on page 14 and rotate the bearing housing counter clockwise to align the marks.

Run this procedureArrow right

Packing Removal and Installation

Check mark

Safety Precautions

Check mark

Ensure pressure in the chamber is completely vented through appropriate openings or connections.

Check mark

Lock out or make non-operational the driving means to prevent starting during maintenance.

Check mark

Identify the liquid the pump has been handling and understand necessary safety precautions.

Check mark

Obtain and review the material safety data sheet (MSDS) for the liquid.

Check mark

Removal: Packing

Check mark

Insert brass or plastic bar through port opening between rotor teeth or lock coupling end of shaft to prevent turning.

Check mark

Bend up tang of lockwasher and remove locknut and lockwasher from shaft using a spanner wrench.

Check mark

Remove brass or plastic bar from port opening.

Run this procedureArrow right

Pump Relubrication

Check mark

Grease Bracket Fitting

Check mark

Select the pump series for relubrication

Check mark

Add grease to the bracket grease fitting until it comes out of the relief fitting on the opposite side of the bracket

Check mark

Select the type of lubricant used for bracket fitting

Check mark

Regrease Bearing Housing

Check mark

Regrease the bearing housing until grease comes out of the shaft end lip seal

Check mark

Select the type of grease used for bearing housing

Run this procedureArrow right

Carbon Graphite Bushing Installation

Check mark

Preparation

Check mark

Ensure all necessary tools and materials are available (press, lubricant, chamfering tools).

Check mark

Verify the bushing and mating part are clean and free of debris.

Check mark

Standard Installation

Check mark

Apply lubricant to the bushing and mating part.

Check mark

Add a chamfer on the bushing and the mating part.

Check mark

Use a press for installation.

Check mark

Ensure the bushing is started straight.

Check mark

Do not stop pressing operation until bushing is in proper position.

Run this procedureArrow right

Pressure Relief Valve Pressure Adjustment

Check mark

Safety Precautions

Check mark

Ensure pressure in the chamber is completely vented

Check mark

Lock out or make non-operational the driving means

Check mark

Identify the liquid the pump has been handling

Check mark

Obtain and understand the material safety data sheet (MSDS) for the liquid

Check mark

Pressure Adjustment Procedure

Check mark

Remove valve cap and loosen locknut

Check mark

Install a pressure gauge in the discharge line

Check mark

Adjust the pressure setting using the adjusting screw

Run this procedureArrow right
