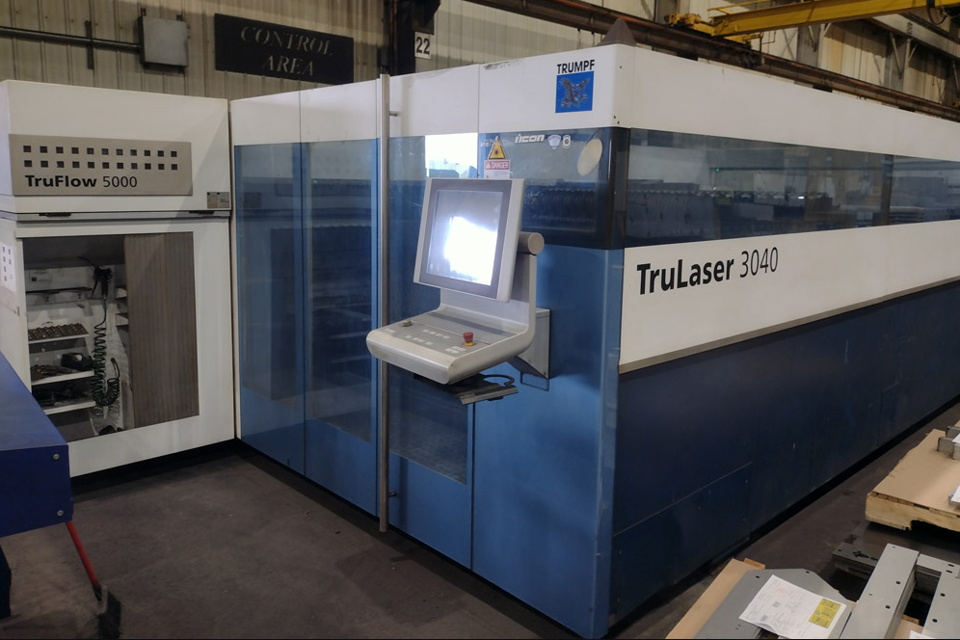

Trumpf Laser Cutting Machine TRUMPF 3040 CO2 LASER

Cleaning and lubricating the chain and cam assembly of the pallet transport unit

Cleaning the X and Y axis racks and guideways

Checking and cleaning the Z axis bellows

Clean the grease collecting tray

Cleaning the drive unit's cover sheet

Warning: This maintenance check requires trained personnel with PPE!

Extinguisher system maintained?

Nozzle changer cleaned or replaced?

Sleeve and internal part of the nozzle replaced?

Internal part checked and cleaned or replaced?

Condensed water container emptied?

Check the dust chamber for dust accumulation, contamination or damage

Clean the dust chamber and repair if necessary

Refit the cover and tighten the screws

Check the purging valve acoustically and clean if necessary

Remedy malfunctions according to the information in the supplier documentation

Dismantling and cleaning the pipe elbow and suction tube

Switch off the MAIN SWITCH, lock it and pull out the key

Pull out the filter mat (1) upwards

Switch off the MAIN SWITCH, lock it and pull out the key

Sign off on the machine maintenance

Warning: For trained personnel only

Do not put the machine into operation if a safety device is damaged (deep scorching, hole, crack, etc.). Replace damaged parts immediately.

Laser protection window undamaged

Invisible, high-energy laser radiation! Severe skin burns and eye injuries may occur.

Replace the laser protection window if 1 mm scorched markings or holes are discovered during inspection.

Only put the machine back into operation once the defective laser protection window has been replaced.

Laser protection window checked for scorched areas, holes or damage

Sign off on the daily laser cutting machine maintenance
