Skyjack Articulating Boom Lifts SJ60 AJ+
Need answers fast?
Explore the manual using AI.

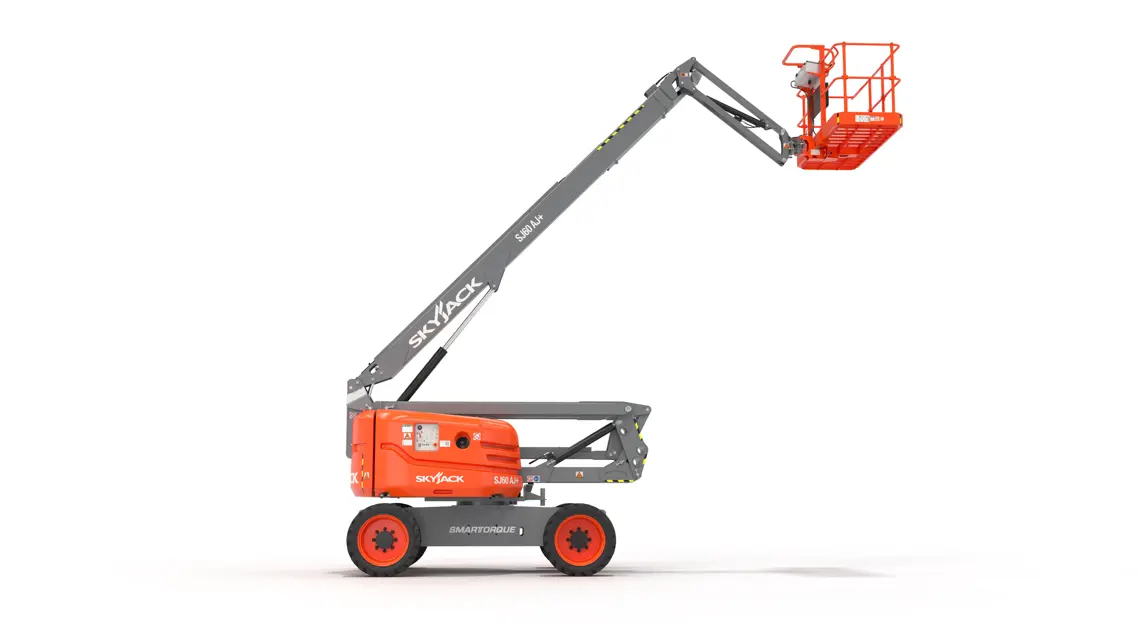

The Skyjack Articulating Boom Lift SJ60 AJ+ is a versatile aerial work platform designed for optimal performance in various industrial applications. Known for its reliability and ease of use, this boom lift provides exceptional reach and maneuverability, making it ideal for construction and maintenance tasks. Experience enhanced productivity with the SJ60 AJ+.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Skyjack Articulating Boom Lifts SJ60 AJ+
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Skyjack Articulating Boom Lifts SJ60 AJ+
Create an account to install this asset package.
Maintenance Plans for Skyjack Articulating Boom Lifts Model SJ60 AJ+
Integrate maintenance plans directly into your work orders in MaintainX.
200 Daily / 200 Hourly Base Maintenance
Base Weldment: No cracks or deformation.
Base Electrical Panel: Correctly attached and no damage. Tight wire connections and fasteners.
Axles: Correctly attached and no missing components. Tight fittings and hoses and no leaks. Make sure the axles and drive shaft are lubricated.
Electric Drive Motor: Correctly attached and no damage. Tight wire connections and fasteners.
Steer Assembly: Correctly attached and no missing components. Tight fittings and hoses. No leaks, damage, or wear.
Torque Hubs: Correctly attached and no damage or missing components. Tight fittings, hoses, and bolts. No leaks.
Wheel Motors: Correctly attached. No damage or missing components.
Wheel/Tire Assembly: Do a check of all tires for damage, wear, and correctly aligned.
Sign off on the 200 Daily / 200 Hourly Base Maintenance
200 Daily / 200 Hourly Articulating Boom Lifts Inspection
No open service bulletins
Annual Inspection completed within 13 months
Labels are in place, correctly attached & readable
Limit Switches are correctly installed and no obstructions or damage
Special Options and Approved Attachments are correctly attached and no damage or missing components
Function Tests: Refer to the operating manual for your serial number for information on how to do these tests.
Sign off on the inspection
200 Daily / 200 Hourly Platform Maintenance
Railings and Gate: Correctly attached and no damage or missing components.
Platform Floor: Correctly attached and no damage or missing components.
Footswitch: Correctly attached. Operates correctly with no modifications.
Fall-Protection Anchorage: Anchorages are correctly attached and no damage.
AC Power Socket: No obstructions, dirt, or damage.
Platform Control Console: Operate the switches and make sure they all operate correctly. No damage or missing components.
Manual Storage Box: Manuals and documents are in storage box, in good condition, and you can read them.
Sign off on the platform maintenance
200 Daily / 200 Hourly Boom Maintenance
Rotary Actuator(s): No damage or missing components. Tight fittings, hoses, and bolts and no leaks.
Jib: No damage or missing components. Tight hoses and bolts and no leaks.
Boom: No damage or missing components. No deformation or cracks in welds. Tight fittings, hoses, bolts, and pins. No leaks.
Cable Track: No damage or missing components.
Wear Pads: No damage, wear, or missing components. Fasteners tight.
Riser: No damage or missing components. No deformation or cracks in welds. Tight fittings, hoses, bolts, and pins. No leaks.
Cylinders: No damage or missing components. Tight fittings and hoses and no leaks. Pins and bushing are tight and correctly installed.
Control Cables and Hoses: No damage or missing components. No leaks.
Wire Ropes: No damage or missing components. Tight jam nuts. No spring gaps.
1 Yearly Articulating Boom Lifts Maintenance
Hydraulic Return Filter check
High-Pressure Filter check
Charge Filter check
Air Filter check
Fuel Filter check
Radiator coolant condition check
Oscillating Cylinders mounting bolts torque seal check
Axles and brakes check
Wheel/Tire Assembly check for loose bolts
Parts for Skyjack Articulating Boom Lifts SJ60 AJ+
Access the parts list for your equipment in MaintainX.
Valve, Control (Enable)
159821
Valve, Control (Load Circuit Select)
194492
Valve, Control (Platform Flow Enable)
231438
Valve, Counterbalance (Jib Cylinder)
149488
Valve, Control (3.5kW Generator)
146078
Valve, Control (Enable)
159821
Valve, Control (Load Circuit Select)
194492
Valve, Control (Platform Flow Enable)
231438
Valve, Counterbalance (Jib Cylinder)
149488
Valve, Control (3.5kW Generator)
146078
Valve, Control (Enable)
159821
Valve, Control (Load Circuit Select)
194492
Valve, Control (Platform Flow Enable)
231438
Valve, Counterbalance (Jib Cylinder)
149488
Valve, Control (3.5kW Generator)
146078
