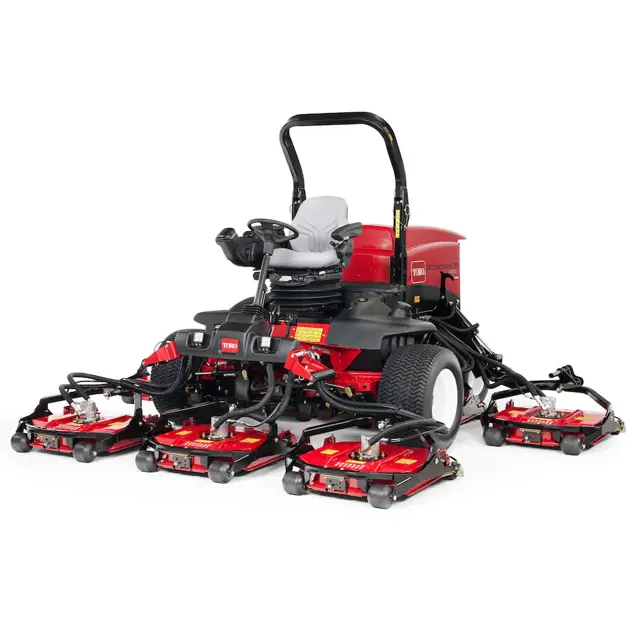

Toro Mower 30885

Note: To reset the service due indicator in the Infocenter; refer to Setting the Service Due Timer.

Start the engine and let it run 5 minutes to allow the oil to warm up.

Park the machine on a level surface, engage the parking brake, shut off the engine, and remove the key.

Replace the engine oil and filter.

Sign off on the engine oil and filter replacement

Use clean fuel to flush out the tank

Change the front planetary-gear oil or yearly, whichever comes first

Planetary and brake housing lubrication capacity: 0.65 L (22 fl oz)

Draining the Planetary-Gear-Drive

Filling the Planetary-Gear-Drive with Lubricant

Axle capacity: 2.4 L (80 fl oz)

Warning: Ensure the machine is parked on a level surface and the engine is shut off.

Is the machine parked on a level surface?

Is the area around the 3 drain plugs clean?

Are the oil-level check plugs and the main-axle-vent cap removed?

Are the drain plugs removed and gear lubricant drained into the pans?

• If you are using the recommended hydraulic fluid, replace the hydraulic filter (sooner if the service interval indicator is in the red zone).

Use Toro replacement filters Part No. 94-2621 for the rear (cutting units) of the machine and Part No. 75-1310 for the front (charge) of the machine.

Important: Using another filter may void the warranty on some components.

1. Tilt the operator’s seat to access the mower-pressure filter.

2. Replace the charge hydraulic filter at the hydraulic lift compartment.

3. Lower and secure the operator’s seat.

4. Replace the return filter at the right side of the machine.

5. Start the engine and let it run for about 2 minutes to purge air from the system. Shut off the engine and check for leaks.

• Service the air cleaner (earlier if the air-cleaner indicator shows red, and more frequently in extremely dirty or dusty conditions).

Check the air-cleaner body for damage which could cause an air leak. Replace it if it is damaged. Check the whole intake system for leaks, damage, or loose hose clamps.

Service the air-cleaner filter only when the service indicator requires it. Changing the air filter before it is necessary only increases the chance of dirt entering the engine when you remove the filter.

Important: Ensure that the cover is seated correctly and seals with the air-cleaner body.

Note: Do not clean a used element because cleaning it can damage the filter media.

Important: Never attempt to clean the safety filter. Replace the safety filter after every 3 primary filter services.

2. Reset the indicator if it shows red.

• Inspect the fuel lines and connections.
