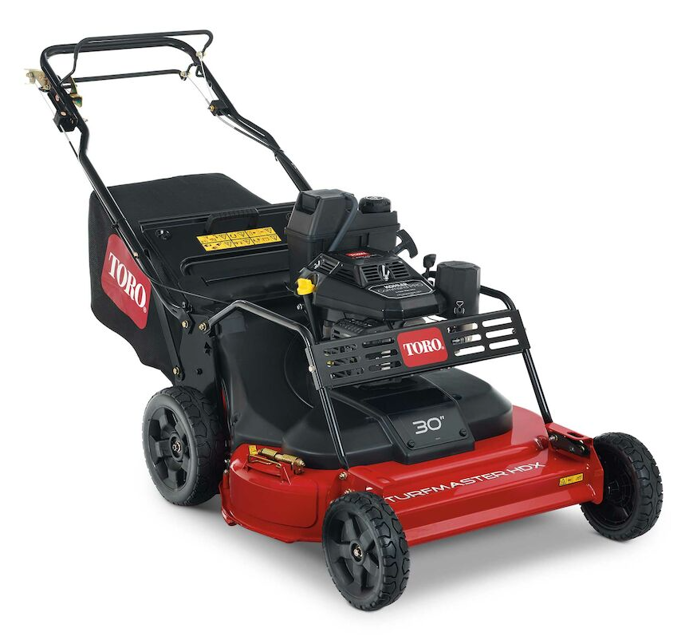

Toro HDX Walk-Behind Lawn Mower 22225

1. Remove the rear wheels and clean any debris from the wheel-gear area.

2. After cleaning, apply a small amount of anti-seize to the gears.

Note: If you are operating the machine in extreme conditions, cleaning the wheels more frequently than recommended will result in increased gear life.

Note: To prevent damage to the bearing seals, do not use a high-pressure water sprayer on the bearings.;

Engine shut off and all moving parts stopped

Wire disconnected from the spark plug

Upload a photo of the removed belt cover

Debris removed from under the belt cover

Cable jacket pulled to remove slack

Enter the slack in the brake cable in mm

Enter the torque on the cable-clamp screw in N∙m

Belt cover installed with the 4 bolts

Important: If the oil level in the crankcase is too low or too high and you run the engine, you may damage the engine.

Check the blades and service them, if necessary

Important: You will need a torque wrench to install the blades properly. If you do not have a torque wrench or are uncomfortable performing this procedure, contact an Authorized Service Dealer.

Examine the blades for sharpness and any wear or damage whenever you run out of fuel

DANGER: A worn or damaged blade can break, and a piece of the blade could be thrown toward you or bystanders, resulting in serious personal injury or death.

Inspect the blades periodically for wear or damage

For Self-Propel-Drive Models Only

Whenever you install a new self-propel cable or if the self-propel drive is out of adjustment, adjust the self-propel drive.

Turn the adjustment nut counterclockwise to loosen the cable adjustment

Adjust the tension on the cable by pulling it forward or pushing it back and holding that position

Note: Pull the cable toward the engine to increase the traction; push the cable away from the engine to decrease the traction.

Note: Adjust the cable in small increments to avoid over adjusting it.

Turn the adjustment nut clockwise to tighten the cable adjustment.

Note: Tighten the nut firmly with a socket or wrench.

Sign off on the self-propel drive adjustment

Warning: Do not operate the engine without the air filter assembly; extreme engine damage will occur.

Engine shut off and all moving parts stopped

Wire disconnected from the spark plug

Upload a photo of the cleaned cover

Foam pre-filter removed from the paper filter

Paper filter replaced if excessively dirty

Foam pre-cleaner washed with a mild detergent and water, then air dried

Foam pre-cleaner lightly oiled with new engine oil; excess oil squeezed out

Foam pre-cleaner installed onto the paper filter
