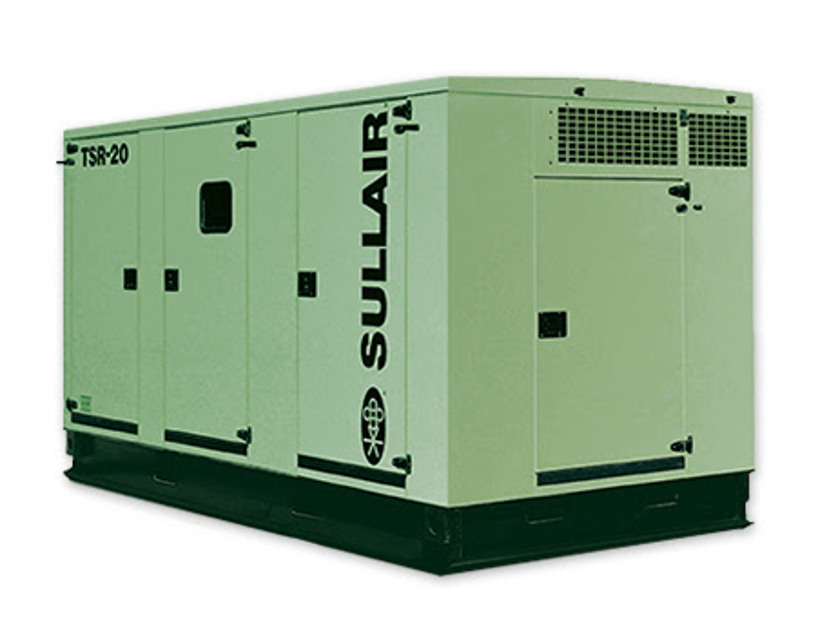

Sullair Industrial Air Compressor TSR-20_100XH

Create an account to install this asset package.

Maintenance Plans for Sullair Industrial Air Compressor Model TSR-20_100XH

Integrate maintenance plans directly into your work orders in MaintainX.

2000 Hourly Compressor Maintenance

Cleaned the return line strainer?

Replaced the fluid filter element?

Run this procedure

Fluid Return / Sight Glass Maintenance

Fluid return/sight glass maintenance should be performed along with that of the fluid filter.

Fluid return/sight glass usually results from condition of the filter assembly.

Order filter assembly no.

Disconnect the tube at bottom of sight glass.

Unscrew the sight glass assembly where the elbow fitting joins the strainer/filter.

Remove used filter assembly, and replace with the new assembly.

Inspect and clean the orifice inside the sight glass blocks. Remove the orifice with an allen wrench.

Coat/lubricate the O-rings with silicone grease.

Re-attach the connectors to the sight glass/ orifice blocks.

Run this procedure

2000 Hourly Fluid Filter Replacement

FILTER MAINTENANCE

Replace the fluid filter element under any of the following conditions

FLUID FILTER ELEMENT REPLACEMENT

Use a wrench to remove the filter canister

Remove and dispose of filter element properly

Note! Dispose of fluids in accordance with applicable federal, state and local regulations

Clean gasket seating surface

Apply a light film of fluid to the element seal

Install the element into the filter canister

Run this procedure

Pressure Regulator Adjustment

Warning: This procedure should be performed by trained personnel only.

Is the compressor started?

Adjust the service valve to maintain service air pressure at approximately 1 psi over its rated pressure.

Turn the inlet valve regulator adjusting screw until 100psi is showing on the pressure gauge.

Is the adjusting screw locked in place with the locknut?

Sign off on the pressure regulator adjustment

Run this procedure

Compressor Routine Maintenance

Warning: HIGH-PRESSURE HAZARD! DO NOT remove caps, plugs, and/or other components when compressor is running or pressurized. Stop compressor and relieve all internal pressure before doing so. Failure to comply could result in death or serious injury.

Fluid level in the receiver tank is at the mid-point

Frequent addition of fluid required?

If frequent addition of fluid is required, it indicates the presence of a leak or a condition causing excessive fluid consumption.

Proper indications on the controller display after routine start

All compressor operation indications are normal after the compressor has warmed up

Sign off on the compressor routine maintenance

Run this procedure
