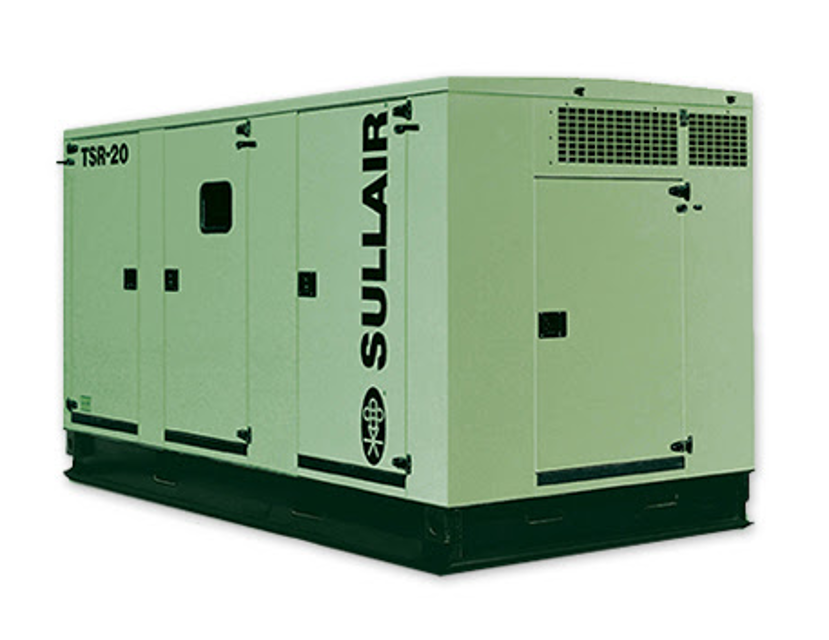

Sullair Industrial Air Compressor TSR-20_150L

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Clean the return line strainer.

Sign off on the initial 50 hours compressor maintenance.

Fluid return/sight glass maintenance should be performed along with that of the fluid filter.

Fluid return/sight glass usually results from condition of the filter assembly.

Disconnect the tube at bottom of sight glass.

Unscrew the sight glass assembly where the elbow fitting joins the strainer/filter.

Remove used filter assembly, and replace with the new assembly.

Inspect and clean the orifice inside the sight glass blocks. Remove the orifice with an allen wrench.

Coat/lubricate the O-rings with silicone grease.

Re-attach the connectors to the sight glass/ orifice blocks.

Cleaned the return line strainer?

Replaced the fluid filter element?

Sign off on the 2000 hourly compressor maintenance

Replace the fluid filter element under any of the following conditions, or whichever occurs first

FLUID FILTER ELEMENT REPLACEMENT

Use a wrench to remove the filter canister

Remove and dispose of filter element properly

Note! Dispose of fluids in accordance with applicable federal, state and local regulations

Apply a light film of fluid to the element seal

Install the element into the filter canister

Warning: This maintenance check requires trained personnel with PPE!

Protective grill removed from the adapter housing

Retaining screw located on the outer sleeve loosened

Coupling element exposed by sliding the sleeve to one side

Coupling element unwrapped from the coupling jaws

New element installed by wrapping it around the jaws, engaging the cogs on the element into the jaws

Outer sleeve reinstalled and secured by tightening the two screws to 45 in·lbs (5 Nm)
