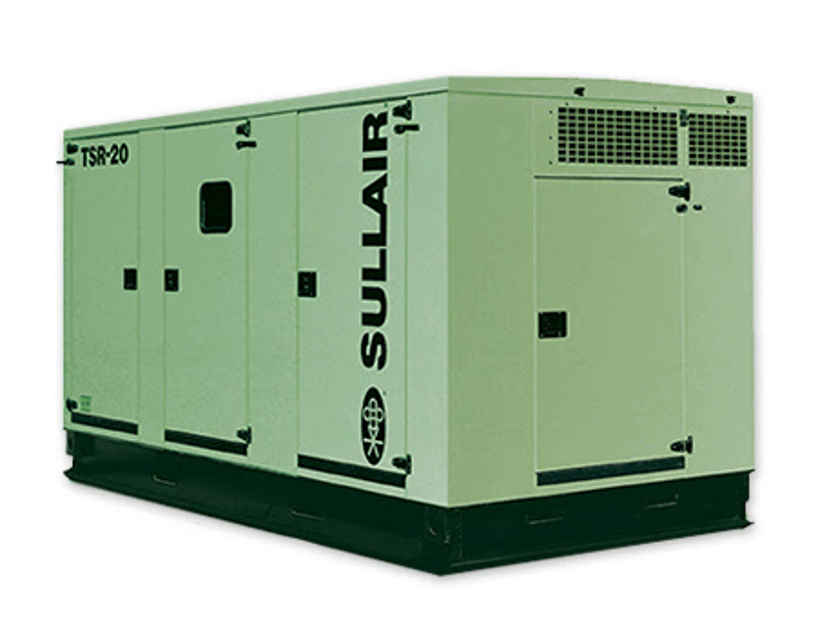

Sullair Industrial Air Compressor TSR-20_200XH

Replace the fluid filter element under any of the following conditions, or whichever occurs first

FLUID FILTER ELEMENT REPLACEMENT

Use a wrench to remove the filter canister

Remove and dispose of filter element properly

Note! Dispose of fluids in accordance with applicable federal, state and local regulations

Apply a light film of fluid to the element seal

Install the element into the filter canister

CAUTION! Relieve all pressure from the receiver tank and all compressor lines.

Disconnected all piping connected to the separator cover?

Loosened and removed the twelve (12) 3⁄4” x 2-1/2” GR5 hex head capscrews from the cover plate?

Lifted cover plate from the separator tank?

Removed the primary and secondary separator elements?

Scraped the old gasket material off the cover and flange on the separator tank?

Inspected the separator tank for rust, dirt, etc.?

Warning: This maintenance check requires trained personnel with PPE!

Protective grill removed from the adapter housing

Retaining screw located on the outer sleeve loosened

Sleeve slid to one side, exposing the coupling element

Coupling element unwrapped from the coupling jaws

New element installed by wrapping it around the jaws, engaging the cogs on the element into the jaws

Outer sleeve reinstalled and secured by tightening the two screws to 45 in·lbs (5 Nm)

Replace the fluid filter element

Sign off on the 2000 hourly compressor maintenance

Warning: This procedure should be performed by trained personnel only.

Adjust the service valve to maintain service air pressure at approximately 1 psi over its rated pressure.

Turn the inlet valve regulator adjusting screw until 100psi is showing on the pressure gauge.

Is the adjusting screw locked in place with the locknut?

Sign off on the pressure regulator adjustment
