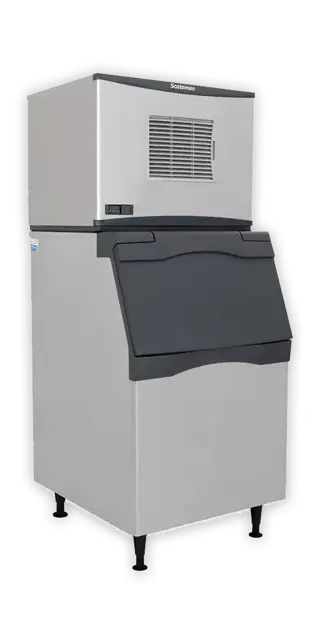

Scotsman Modular Cuber C1030SR-32

Put the controller into test mode by depressing Off for 3 seconds then Clean for 3 seconds

Is the Condenser Fan motor indicator light on at the end of the test cycle?

Is the liquid line valve open at the end of the test cycle?

Check voltage to the liquid line valve coil at the end of the test

Is there full voltage at the liquid line lead connection?

Ensure fan pressure control connection is jumped

Put the controller into test mode by depressing Off for 3 seconds then Clean for 3 seconds

Is the Condenser Fan motor indicator light on at the end of the test cycle?

Did the fan motor start and run when the indicator light was on?

Is there full voltage at the fan motor lead connection at the end of the test?

Is there voltage from the fan motor lead (top wire) to ground when the indicator light is on?

Release probes by pushing pins in

Pull down, then lift up to remove probe

Clean all dirt and scale from the housing

Clean entire probe, ensuring circled area is clean

Observe the Ready To Harvest light

Connect the metal part of the Ice Thickness sensor to the evaporator or touch its metal surface to the metal control box wall

Did the Ready for Harvest light turn ON?

Unplug the ice thickness sensor lead from the controller

Remove right side panel liner and panel

Disconnect ice thickness sensor from its bracket and move out of the way

Perform 4 to 6 strokes across the normal flow of water using a clean nylon scrubbing pad
