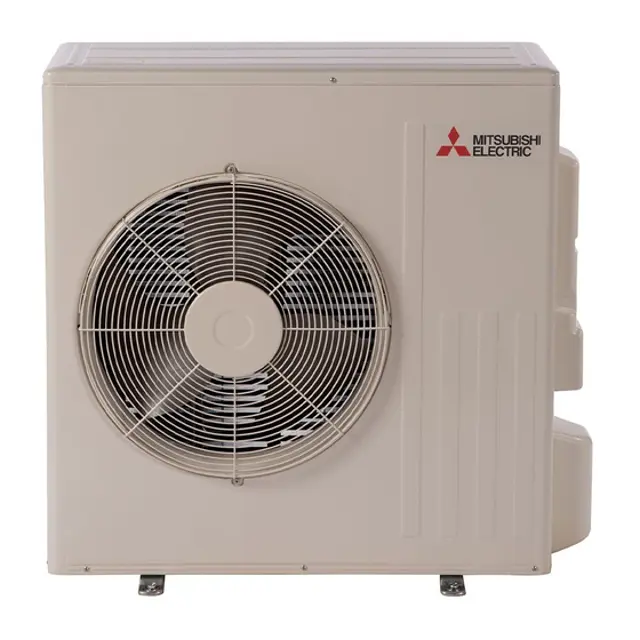

Mitsubishi Outdoor Unit MUZ-HM09NA-U2

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Model MUZ-HM09NA-U2

Integrate maintenance plans directly into your work orders in MaintainX.

Pre-Heat Control System Setting Adjustment

Pre-Heat Control Activation/Deactivation

Select the desired pre-heat control setting

Is the JK wire cut for activation or soldered for deactivation?

Inverter P.C. Board Check

Check the inverter P.C. board for jumper wires

Are the jumper wires correctly set according to the desired pre-heat control setting?

Post-Adjustment Verification

Enter the discharge temperature thermistor reading

Is the discharge temperature thermistor reading 68°F (20°C) or below?

Run this procedure

Defrost Setting Adjustment

Preparation

Ensure power is turned off to the outdoor inverter P.C. board

Gather necessary tools for cutting/soldering the JS wire

JS Wire Adjustment

Select the current model and configuration

Cut or solder the JS wire according to the selected configuration

Verification

Verify the defrost finish temperature is set correctly for the selected model

Record any discrepancies or issues encountered during the adjustment

Run this procedure
