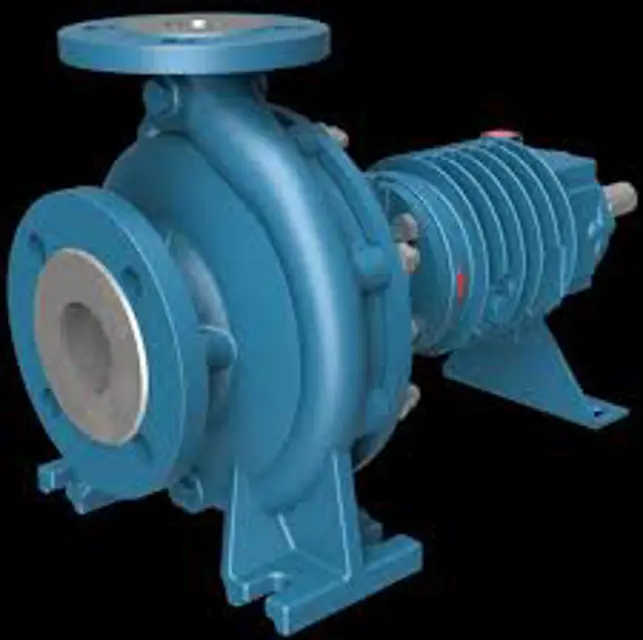

Pompetravaini Pump TC80-200

Is the pump operating without abnormal vibrations or noises?

Describe any abnormal vibrations or noises detected

Alignment and Running Conditions

Ensure the following actions are considered

Replace the lubricant completely

Inspect the bearings for cleanliness

Ensure the pump is turned off and cooled down

Gather necessary tools and materials (oil, oil-cruet, etc.)

Remove the vent plug of the bearing frame

Was the old oil disposed of following current regulations?

Pour oil directly into the cruet, not into the elbow of the oil-filler or bearing frame plug

Select the oil change frequency based on operating conditions

Enter the current bearing temperature in °C/°F

Is the bearing temperature within the normal range (below 85°C/185°F)?

Ensure the pump is completely stopped before handling the unit.

Drain the pump or close the pipes using a valve to prevent sudden rotation.

Wait for the pump to cool to avoid contact with high temperature surfaces.

Disconnect the power supply and any other connections before maintenance.

Ensure power supply is restored only by the maintenance operator.

Ensure the presence of at least two operators during maintenance.

Inform the foreman that maintenance is in progress.

Use appropriate protective devices.
