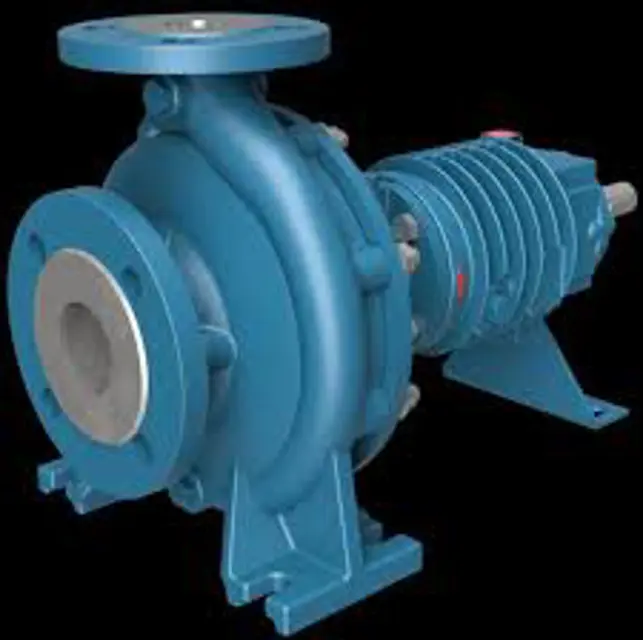

Pompetravaini Pump TC32-125

Pour oil directly into the cruet

Ensure oil is not poured into the elbow of the oil-filler or bearing frame plug

Select oil change frequency based on conditions

Is the bearing temperature below 85°C/185°F?

Is the pump operating without abnormal vibrations or noises?

Describe any abnormal vibrations or noises detected

Alignment and Running Conditions

Ensure the following actions are considered

Replace the lubricant completely

Inspect the bearings for cleanliness

Ensure the pump is turned off and cooled down

Gather necessary tools and materials (oil, oil-cruet, etc.)

Remove the vent plug of the bearing frame

Dispose of the exhausted oil following current regulations

Pour oil into the bearing frame through the hole of the plug until oil is visible in the oil-filler elbow

Record the total working hours of the seal

Has the mechanical seal exceeded its normal life span of 4000 hours?

Is the mechanical seal being replaced?

Check the condition of the shaft sleeve

Is the shaft sleeve damaged or doubtful?

Replace the shaft sleeve if necessary
