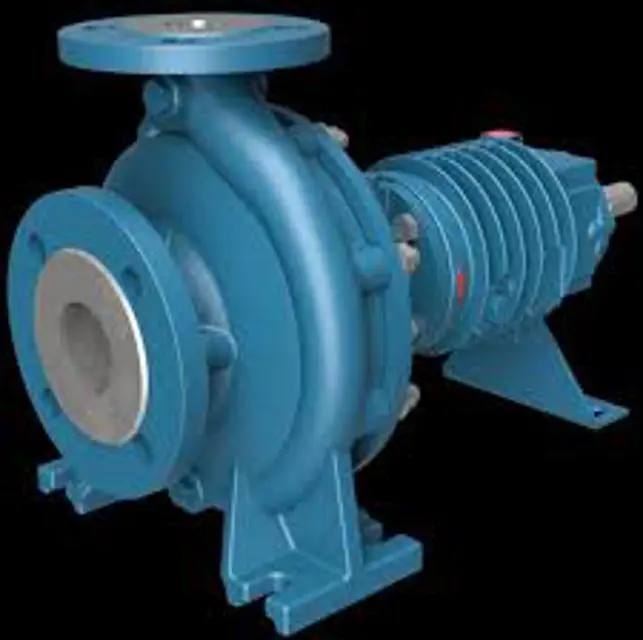

Pompetravaini Pump TC40-160

Is the pump operating without abnormal vibrations or noises?

Describe any abnormal vibrations or noises observed

Pump/Motor Alignment and Condition Check

Ensure the following actions are considered

Replace the lubricant completely

Inspect the bearings for cleanliness

Inspect O-rings and gaskets for wear and tear

Pour oil directly into the cruet, not into the elbow of the oil-filler or bearing frame plug

Record the bearing frame oil bath temperature

Is the bearing temperature within normal operating conditions (below 85°C/185°F)?

Check for potential causes of overheating

Oil Quality and Viscosity Check

Measure the oil viscosity at 40°C/104°F

Is the oil viscosity suitable for high operating temperatures?

Is the oil viscosity suitable for TCD series pumps?

Check pump series for lubrication requirements

Is the bearing temperature within normal range (below 85°C)?

Bearing Maintenance for TMA Pumps

Clean the ball bearings carefully

Apply new lubricating grease to the ball bearings

Ensure not to over lubricate the bearings

Sealed Pre-Greased Bearings Check

Inspect sealed pre-greased bearings for any issues

Record the total working hours of the mechanical seal

Is the mechanical seal within acceptable wear limits?

Was the mechanical seal replaced?

Inspect the condition of the shaft sleeve

Is the shaft sleeve in good condition?
