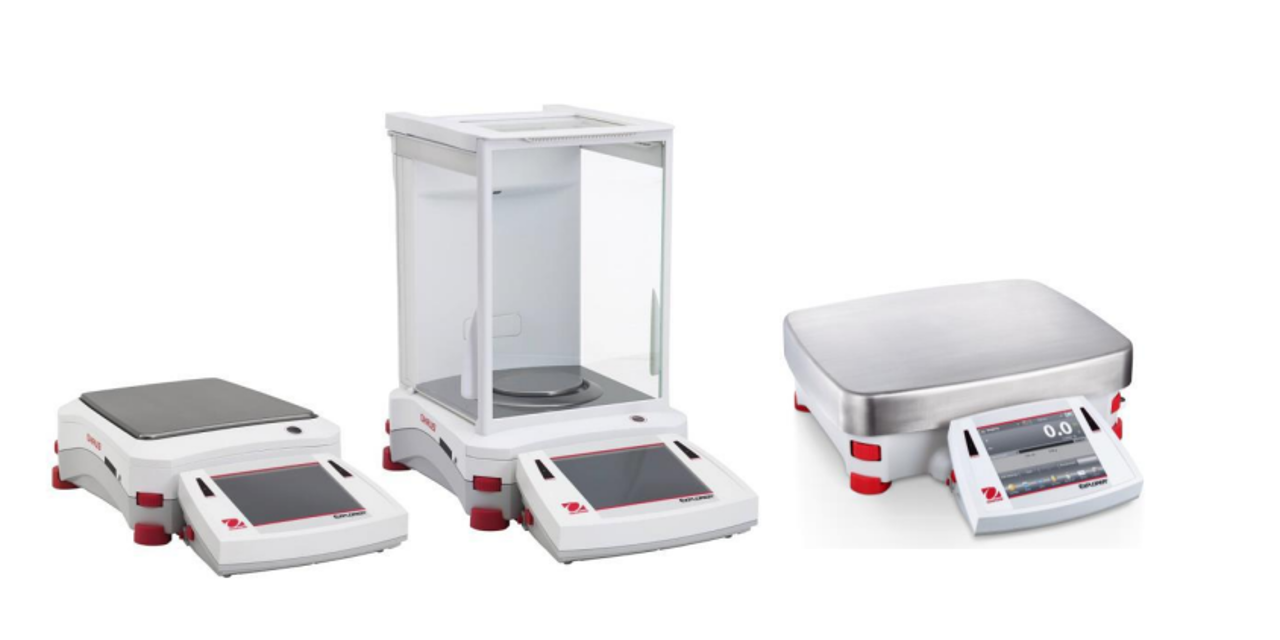

Ohaus Explorer Balances EX24001

Ensure ESD protection is in place

Use a conductive mat with wrist straps

Remove the accessory module, if equipped

Remove the speaker by removing the 2 screws and lifting it out

Enter the service menu and adjust settings

Record Auto Zero Tracking Setting

Test Procedure for Non-Approved Models

Open the balance and verify no mechanical interference, pinched wire, or bad solder connection

Turn the base on its side and remove the 3 screws holding the Load Cell to the Base

Hold the load cell with one hand when unscrewing the last screw

Turn the base back on its feet ensuring the load cell does not fall out

Remove all cables connecting the load cell to the PCB and lift the load cell out from the housing

Reverse the disassembly procedure to assemble the balance

Ensure no foreign material between the Base mounting surfaces and the Load cell

Remove the Terminal Main PCBA and the LC Display

Remove the Terminal top housing

Install the new Terminal top housing

Attention: This process is only needed for 1, 2 and 3 decimal scales.

Place the load cell in front of you, as shown in the picture below.

Remove the screw on your left side.

Remove the screw on the right side.

Remove both screws with shims completely from the load cell.

Store the screws and shims in a safe place.
