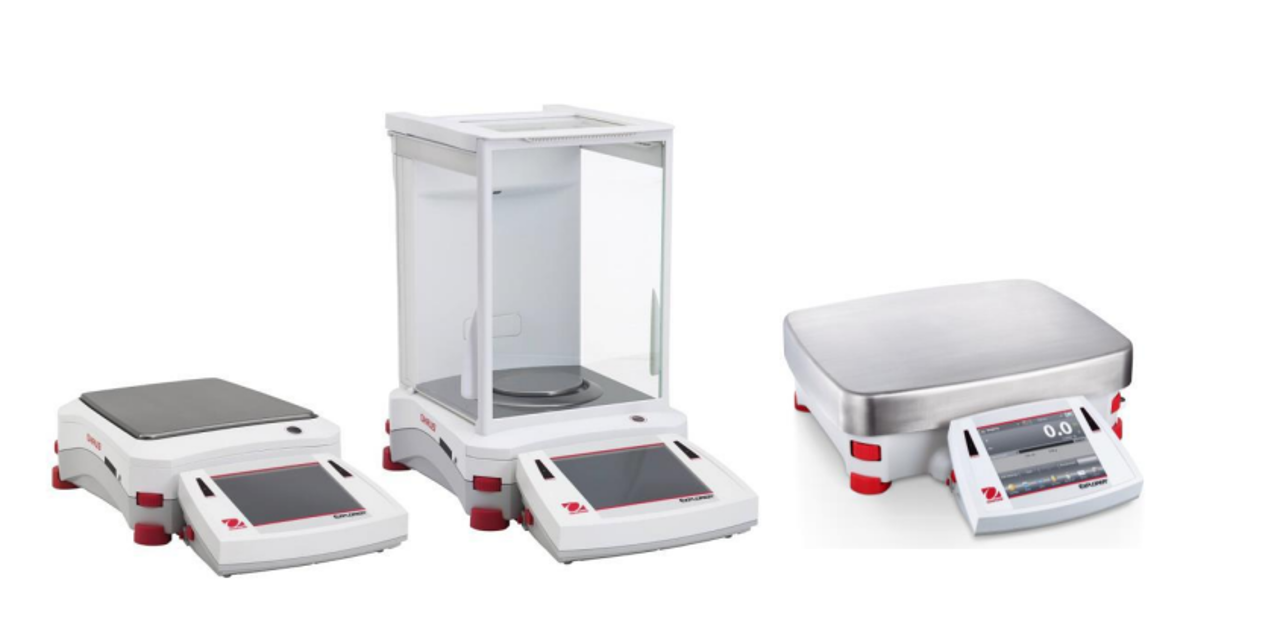

Ohaus Explorer Balances EX6202

Connect a functioning Power Adapter to the balance

Plug the Power Cord into a suitable power source

Verify that the balance start up sequence occurs properly

Warm up the balance for 60 minutes

Record the reading after placing a mass near maximum capacity on the center of the Pan

Verify the display returns to 0g ±1d after removing the mass

Repeat the test three times and record each reading

Attention: This process is only needed for 1, 2 and 3 decimal scales.

Place the load cell in front of you, as shown in the picture below.

Remove the screw on your left side.

Remove the screw on the right side.

Remove both screws with shims completely from the load cell.

Store the screws and shims in a safe place.

Enter the service menu and adjust settings

Record Auto Zero Tracking Setting

Test Procedure for Non-Approved Models

Set AZT (Auto Zero Tracking) to off

Place the test weight in the center of the Weighing Pan

Record the reading at location A

Record the reading at location B

Record the reading at location C

Record the reading at location D
