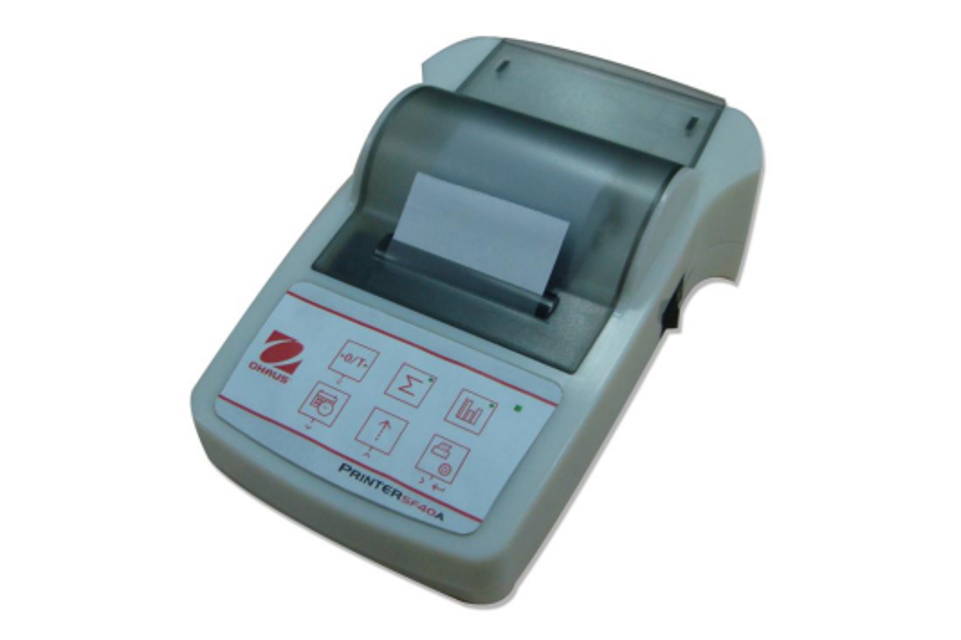

Ohaus Printer SF40A

Create an account to install this asset package.

Maintenance Plans for Ohaus Printer Model SF40A

Integrate maintenance plans directly into your work orders in MaintainX.

Power Supply PCB Replacement

Open Unit

Disconnect cables

Unscrew L and remove Power Supply PCB

Install new Power Supply PCB

Reconnect cables

Close Unit

Test the unit for proper operation

Run this procedure

Interface PCB Replacement

Open Unit

Disconnect Interface Cable P on Interface PCB R

Lift out and remove/replace Interface PCB

Check that all the parts are in place

Post replacement verification

Verify the new Interface PCB is securely installed

Ensure all cables are properly connected

Post replacement cleanup

Clean the work area

Run this procedure

Main PCB Replacement

Preparation

Open Unit (see section 1.4)

Disconnect RS Cable G

Power Supply Disconnection

Disconnect power (red) cable H on Power Supply PCB

Disconnect ground (black) cable H on Power Supply PCB

Print Head Removal

Remove Print Head C (see section 1.5)

Main PCB Replacement

Run this procedure

Print Head / Rubber Pad Replacement

Preparation

Open Unit (see section 1.4)

Disconnect Print Head C from Main PCB D

Print Head Replacement

Remove the ribbon cartridge E

Loosen the 2 front screws

Remove the 2 rear screws

Replace the Print Head

Rubber Pad Replacement

Run this procedure

DC Power Socket / Power Switch Replacement

Preparation

Open Unit (see section 1.4)

Disconnect affected cables

Switch Removal

Pinch retaining clips

Lift switch A out

Post Replacement Check

Is the new switch securely in place?

Are all cables reconnected properly?

Run this procedure

Parts for Ohaus Printer SF40A

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Sp Housing Bottom Sf40A

30047930

Sp Housing Top Sf40A

30047931

Sp Keypad Sf40A

30047932

Sp Pcba Main Sf40A

30047933

Sp Printer Head Sf40A

30047934

Sp Housing Bottom Sf40A

30047930

Sp Housing Top Sf40A

30047931

Sp Keypad Sf40A

30047932

Sp Pcba Main Sf40A

30047933

Sp Printer Head Sf40A

30047934

Sp Housing Bottom Sf40A

30047930

Sp Housing Top Sf40A

30047931

Sp Keypad Sf40A

30047932

Sp Pcba Main Sf40A

30047933

Sp Printer Head Sf40A

30047934
