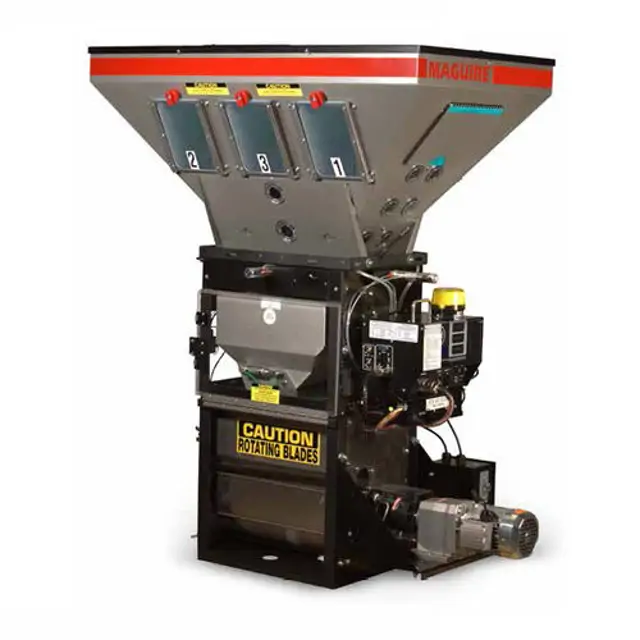

Maguire Weigh Scale Blender WSB-444

Need answers fast?
Explore the manual using AI.

Maguire Weigh Scale Blender WSB-444
Maguire Weigh Scale Blender WSB-444

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Maguire Weigh Scale Blender WSB-444

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Maguire Weigh Scale Blender WSB-444

Maguire Weigh Scale Blender WSB-444

Create an account to install this asset package.

Maintenance Plans for Maguire Weigh Scale Blender Model WSB-444

Integrate maintenance plans directly into your work orders in MaintainX.

Slide Valves And Mix Chamber Inspection

Check mark

Slide Valves Inspection

Check mark

Test slide valve movement during LOTO without air pressure

Check mark

Check for wear on the slide valve guide rods

Check mark

Check cylinder clevis adjustment for correct closing of the valve

Check mark

Check the clevis pin connecting the air cylinder for wear

Check mark

Mix Chamber Inspection

Check mark

Inspect mix blades for damage or wear

Check mark

Replace damaged, worn, or sharp mix blades

Run this procedureArrow right

6 Monthly Load Cell Zero And Full Weight Calibration

Check mark

Pre-Calibration Checks

Check mark

Ensure the weigh bin is empty.

Check mark

Verify the load cell cable is plugged into the side of the controller.

Check mark

Ensure the weigh bin is resting on the load cells freely and does not make contact with anything around it.

Check mark

Check that the air line to the weigh bin’s dump valve is connected as it would be during normal operation.

Check mark

Ensure the load cells and bin are not jammed. Test by lightly touching the bin and observing the display change.

Check mark

Zero Weight Calibration

Check mark

Is *47 disabled on the WSD?

Check mark

Perform zero weight calibration routine.

Run this procedureArrow right

Load Cell Maintenance

Check mark

Load Cell Inspection

Check mark

Check the physical condition of the load cell components

Check mark

Inspect for any visible damage or corrosion

Check mark

Zero Calibration

Check mark

Record the current zero reading

Check mark

Is the zero reading within acceptable range?

Check mark

Full Weight Calibration

Check mark

Record the full weight reading

Check mark

Is the full weight reading within acceptable range?

Run this procedureArrow right

Weigh Scale Blender Maintenance

Check mark

Pneumatic and Electrical Lockout/Tagout (LOTO)

Check mark

Ensure blender is pneumatically and electrically locked out

Check mark

Disconnect compressed air supply

Check mark

Is the pneumatic valve actuator manually operated?

Check mark

Use lockout/tagout valve for pneumatic lockout/tagout if applicable

Check mark

Disconnect blender from air supply if directly connected

Check mark

Dissipate stored/residual energy from pneumatic system using Manual Operations screen

Check mark

Disconnect electric supply

Check mark

Is the blender equipped with an electrical LOTO box?

Run this procedureArrow right

Level Sensor Adjustment

Check mark

Adjusting Sensor Sensitivity

Check mark

Locate the adjustment screw at the rear of the sensor

Check mark

Use a very small regular screwdriver for adjustment

Check mark

Turn the adjustment screw clockwise until the LED turns ON

Check mark

Turn the adjustment screw counter-clockwise until the LED turns OFF

Check mark

Continue turning counter-clockwise for one full revolution after the LED turns off

Check mark

Does the LED turn on when material is present in front of the sensor?

Check mark

Note any additional adjustments made due to material dust or static

Check mark

Sensor Position Adjustment (200 and 400 Series Models Only)

Run this procedureArrow right
