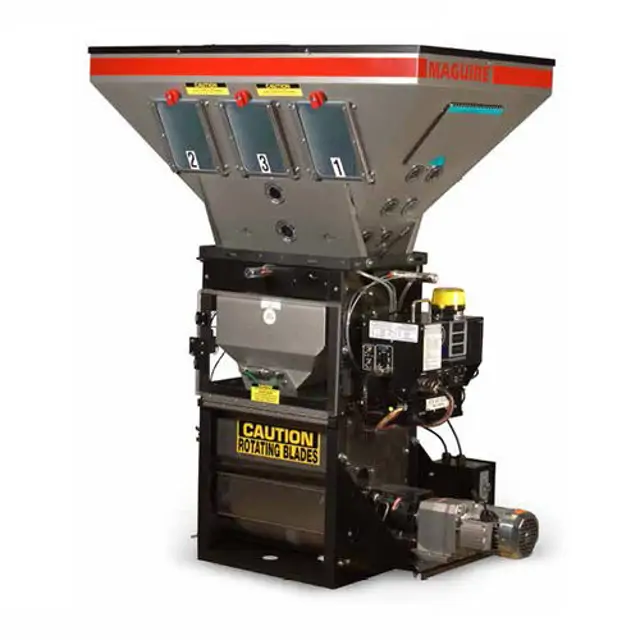

Maguire Weigh Scale Blender WSB-240

Adjust the weigh bin dump valve to close softly

Adjust the needle valve for a soft close

Check for wear at the hinge points

Is the dump flap overlapping the forward edge enough to prevent dribble when closed?

Is there enough space at the rear of the flap to allow for static build up of pellets without interfering with the closing of the flap?

Locate the adjustment screw at the rear of the sensor

Use a very small regular screwdriver for adjustment

Turn the adjustment screw clockwise until the LED turns ON

Turn the adjustment screw counter-clockwise until the LED turns OFF

Continue turning counter-clockwise for one full revolution after the LED turns off

Does the LED turn on when material is present in front of the sensor?

Note any additional adjustments made due to material dust or static

Sensor Position Adjustment (200 and 400 Series Models Only)

Examine Weigh Bin and Hanging Bracket

Ensure no contact with windows or guards

Is there free space on all sides of the weigh bin?

Press down lightly on the weigh bin and note the change in weight readout

Does the display return to the exact weight reading, +/- 1 gram, after removing the touch?

Is there any interference with the weigh bin or weigh bin hanging bracket?

Describe any interference detected and corrective actions taken

Test slide valve movement during LOTO without air pressure

Check slide valve components for wear and adjustment

Inspect mix blades for damage or wear

Replace damaged, worn, or sharp mix blades if necessary

Enter the current air pressure reading

Select the recommended air pressure for the model

Is the air pressure set correctly for the model?

Inspect the pneumatic system for the following issues
