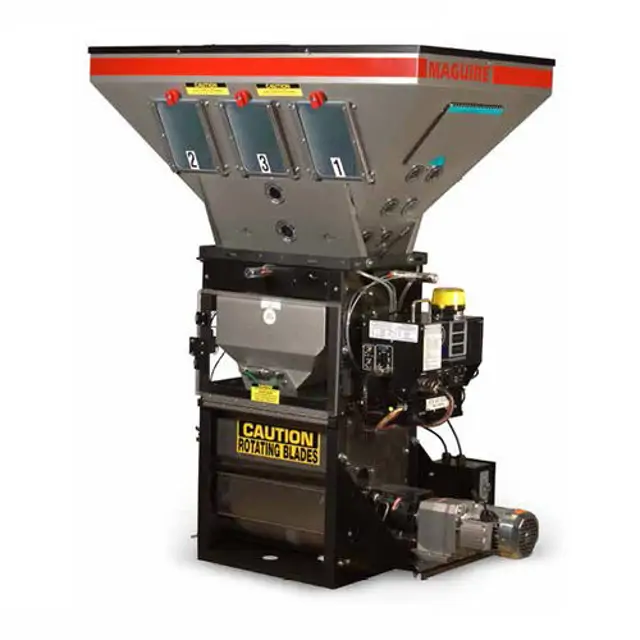

Maguire Weigh Scale Blender WSB-442

Enter the current air pressure reading

Select the recommended air pressure for the model

Is the air pressure set correctly for the model?

Inspect the pneumatic system for the following issues

Is the coalescing filter functioning properly?

Is the air supply clean and dry?

Is the air supply non-lubricated?

Examine Weigh Bin and Hanging Bracket

Ensure no contact with windows or guards

Is there free space on all sides of the weigh bin?

Press down lightly on the weigh bin and note the change in weight readout

Remove touch and verify the weight returns to original reading +/- 1 gram

Was any interference detected with the weigh bin or hanging bracket?

Describe any interference detected and corrective actions taken

Check that all load cell components are in place

Inspect load cell for physical damage

Is the zero weight reading within acceptable range?

Is the full weight reading within acceptable range?

Locate the adjustment screw at the rear of the sensor

Use a very small regular screwdriver for adjustment

Turn the adjustment screw clockwise until the LED turns ON

Turn the adjustment screw counter-clockwise until the LED turns OFF

Continue turning counter-clockwise for one full revolution after the LED turns off

Does the LED turn on when material is present in front of the sensor?

Note any additional adjustments made due to material dust or static

Sensor Position Adjustment (200 and 400 Series Models Only)

Pneumatic and Electrical Lockout/Tagout (LOTO)

Pneumatically lockout the blender

Electrically lockout the blender

Pneumatic Lockout/Tagout Points

Electrical Lockout/Tagout Points

Dissipate stored/residual energy from the pneumatic system using the Manual Operations screen

Material Removal and Cleaning Preparation

Evacuate material from blender using clean-out drain tubes and/or drain chutes
