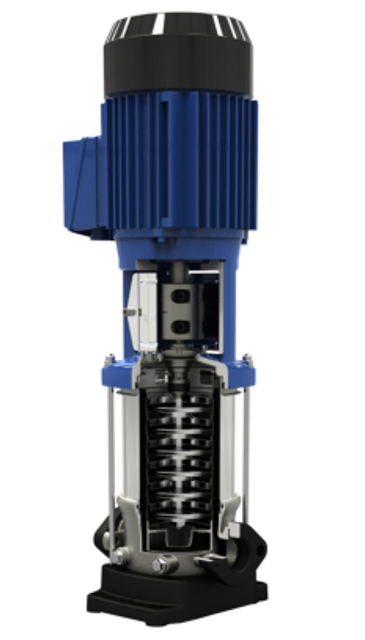

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC V(S)F 60B PN 16/25

Wear safety clothing and a protective mask, if required.

Observe all legal regulations on the disposal of fluids posing a health hazard.

Collect and properly dispose of flushing fluid and any residues of the fluid handled.

Has the pump set been neutralised if it handled corrosive or flammable fluids?

Blow anhydrous inert gas through the pump to ensure drying if necessary.

Ensure the pump is not in operation before draining.

DANGER — Excessive Temperatures

Check the condition of the lubricant regularly

Check the rolling element bearings for running noises regularly

Is the pump design lubricated for life?

Does the motor have a lubricating nipple?

Enter the number of operating hours since last lubrication

Is the pump operated under extreme conditions (vibrations or high temperatures)?

Re-lubricate the rolling element bearings if necessary

Use suitable transport devices, lifting equipment and lifting tackle to move heavy assemblies or components.

Reassemble the pump set in accordance with the general rules of sound engineering practice.

Use suitable tools for setting the pump shaft. Consult KSB if necessary.

Reassemble the pump set in accordance with the corresponding general assembly drawing.

Check O-rings for any damage and replace by new O-rings, if required.

Remove retaining bracket 89-11.03

Attach Fig. 13: Removing retaining bracket 89-11.03

Work in the immediate vicinity of rotating parts. Risk of hand injuries!

Always have this work performed by trained personnel.

Take particular caution when performing this work.

Contaminated Lubricating Nipples. Contamination of the lubricating grease!

Clean the grease lubricating nipples before re-lubricating them.

Nipple Cleaning and Lubrication

Clean the lubricating nipples, if contaminated.

Position the grease press on the lubricating nipple.
