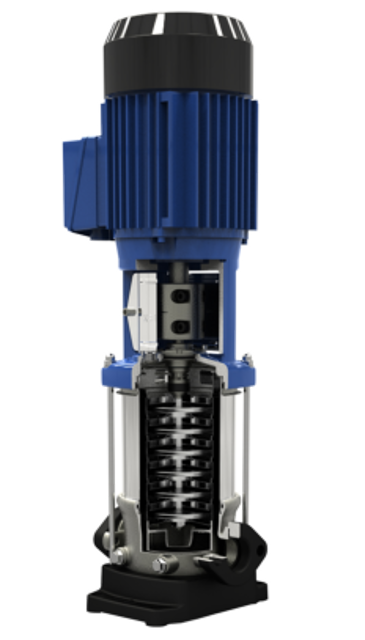

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC V(S)F 25B

!WARNING: Motor tipping over. Risk of crushing hands and feet!

Suspend or support the motor to prevent it from tipping over.

!NOTE: It is recommended to use a specially designed KSB motor.

Ensure the motor meets the following conditions

Retaining bracket 89-11.03 (if applicable) has been removed.

Align the motor on the drive lantern.

Screw in hexagon head bolts 901.02 or 901.04 and washer 554.02 or 554.04.

!CAUTION: Incorrect installation of coupling. Damage to the machinery!

Work in the immediate vicinity of rotating parts. Risk of hand injuries!

Always have this work performed by trained personnel.

Take particular caution when performing this work.

Contaminated Lubricating Nipples. Contamination of the lubricating grease!

Clean the grease lubricating nipples before re-lubricating them.

Nipple Cleaning and Lubrication

Clean the lubricating nipples, if contaminated.

Position the grease press on the lubricating nipple.

Ensure only qualified personnel perform work on the pump set.

Verify the pump set has cooled down to ambient temperature.

Use suitable transport devices and lifting equipment for heavy components.

Observe all safety instructions and information.

Properly shut down the pump set.

Close the shut-off elements in suction and discharge line.

Drain the pump and release the pump pressure.

Vent the pump and suction line before starting up the pump set.

Prime the pump and suction line with the fluid to be handled.

Service the shaft seal regularly.

Check the condition of the lubricant regularly.

Check the rolling element bearings for running noises.

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo nuts 920.03 and lift off the drive lantern

Remove mechanical seal 433 and O-rings 412.01

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo hexagon socket head cap screws 914.03

Remove the mechanical seal 433 using tool 969
