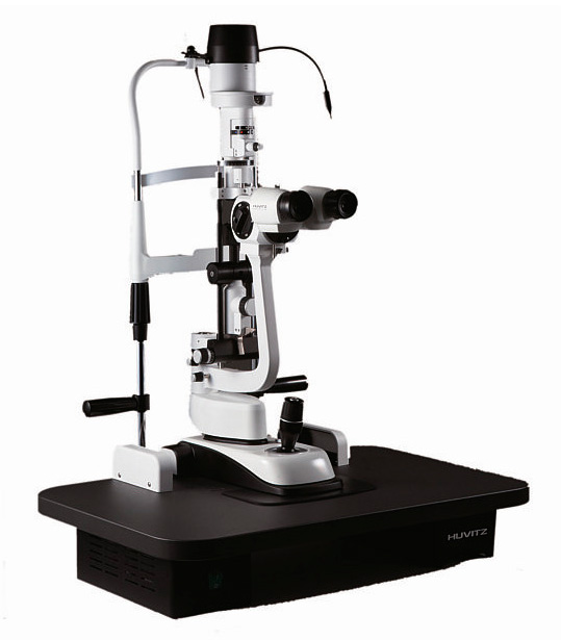

Huvitz Slit Lamp Microscope HS-5500
Create an account to install this asset package.
Maintenance Plans for Huvitz Slit Lamp Microscope Model HS-5500
Integrate maintenance plans directly into your work orders in MaintainX.
Halogen Projection Bulb Replacement
Safety Precautions
Ensure the power cable is disconnected from the main supply plug.
Turn off the power switch before replacing lamps.
Allow lamps to cool down before handling.
Bulb Replacement Procedure
Disconnect the plug from the main supply socket.
Remove the Lamp cover (39).
Remove the (32) from the bulb stems.
Pull the burnt out bulb carefully.
Protection Fuse Replacement
Safety Precautions
Ensure the power cable is disconnected from the main supply plug.
Turn off the power switch before replacing lamps.
Allow lamps to cool down before handling.
Fuse Replacement Procedure
Disconnect the plug from the main supply socket.
Locate the protection fuses on the back of the SMPS and inserted power socket.
Remove the burned-out fuses.
Substitute the fuses with the same rating and type (250Vac, T2.0AL).
1 Monthly Slit Lamp Microscope Cleaning
Safety Precautions
Ensure the power cable is disconnected from the main supply plug.
Turn off the power switch before replacing lamps.
Allow lamps to cool down before handling.
Cleaning Procedure
Apply clinical alcohol and cidex or cidex plus on a soft cloth.
Scrub the body and the probe with the cloth.
Ensure no lacquer, thinner, ethylene, or oxidizing substances are used.
Glass Tube Handling
