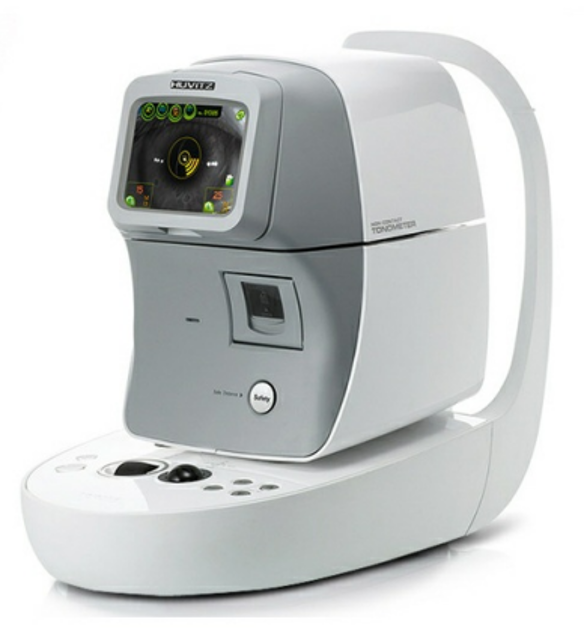

Huvitz Auto Tonometer HNT-7000

Cut the paper inserted in the printer and take it away

Remove paper roll together with shaft from the printer

Pull the rotating shaft away from the paper roll

Insert the rotating shaft into the new roll

Place the paper roll with the rotating shaft into the printer case

Fix the paper onto the printer and adjust the length to come out from the paper outlet

Ensure the equipment is kept clean at all times

Avoid using solvents such as strongly volatile substances, thinner, benzene, etc.

Dampen a soft cloth with soapy water and wring out excess water

Polish each part of the equipment with the damp cloth

Remove dust from the surface of the lens using an air tube

Use a dry cloth to polish the lens or glass parts

Raise the HNT-7000 with two arms carefully

Pick the fuse holder out from the Power inlet

Insert the fuse holder back into the Power inlet

Pull two pins out of the chinrest

Enter the number of chinrest paper sheets to be used

Push the pins into the holes of chinrest paper

Insert the pins into each one of two holes in the chinrest
