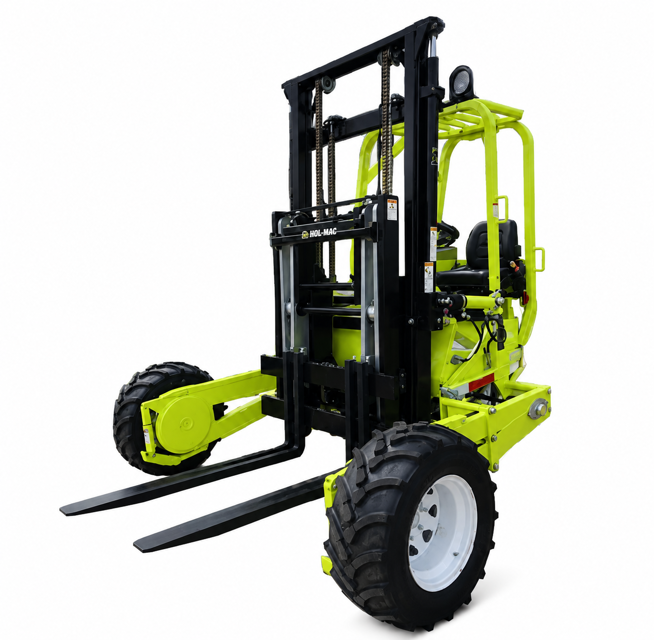

Hol-Mac Corporation Forklift D13-3K

Caution: Ensure Engine is Off and Cool

Ensure the engine is turned off and cool before starting the procedure.

Refer to Fig. 8B for visual guidance.

Turn the shut-off valve handle to the horizontal position.

Depress the throttle pedal all the way and hold for five seconds.

Place a drip pan under the filters to catch any spilling fuel.

Place a floor jack under the chain case near the tire to be changed

Loosen the lug nuts on the wheel before raising the jack

Use the jack to raise the tire until it just clears the floor

Remove the lug nuts and the wheel

Place the new tire and wheel assembly onto the wheel studs

Is the new tire slightly larger than the old one?

Raise the jack slightly if necessary to fit the new tire

Grease the following components

Check for damage and loose or missing bolts on the following components

Is the integrity of the mount intact?
