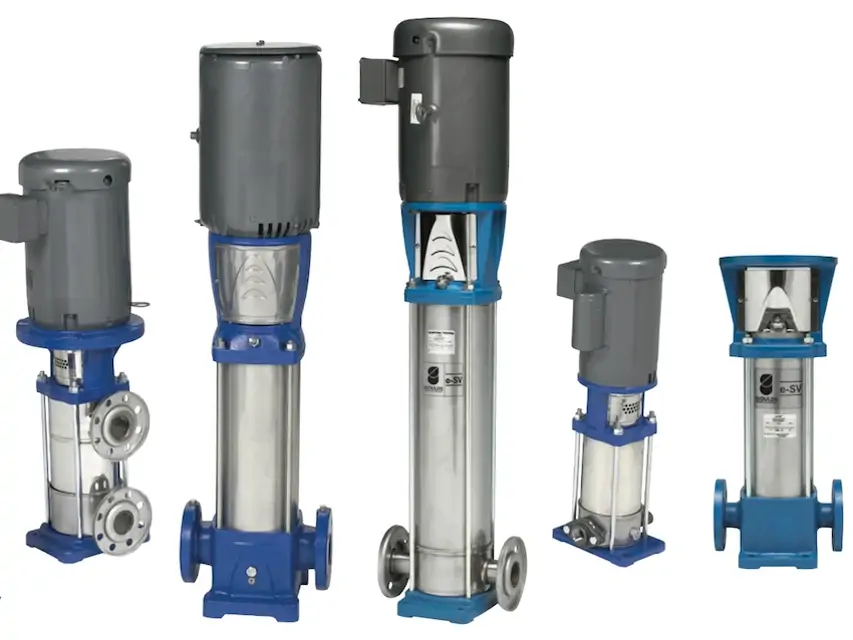

Goulds Pumps Vertical Multistage Pump 15SV7PH40A

Disconnect and lockout electrical power before attempting any maintenance.

Close all necessary suction and discharge valves to isolate the pump from the system.

Drain the liquid from the pump by removing the drain plug and opening the needle valve on the vent plug.

Remove the coupling guards, the 4 coupling hex cap screws, the coupling and coupling drive pin.

Remove the 4 motor hex cap screws (inner screws) on the seal housing.

Remove the seal housing plate on 33-125SV models using the two tapped holes provided.

Disconnect and lockout electrical power before attempting any maintenance

Follow steps 1 through 4 in the 'MECHANICAL SEAL REPLACEMENT' section

Remove the 4 motor hex cap screws and the motor adapter for motor frames 213TC and larger

Install the motor adapter flange onto the new motor

Torque the 4 hex cap screws to the specified values in the 'ENGINEERING DATA' section

Recommended Motor Bearing Lubrication Intervals
