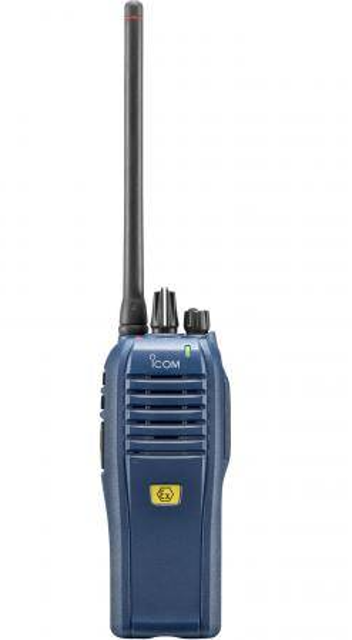

Icom Incorporated Intrinsically-Safe Two-Way Radio IC-F3201DEX

Create an account to install this asset package.

Maintenance Plans for Icom Incorporated Intrinsically-Safe Two-Way Radio Model IC-F3201DEX

Integrate maintenance plans directly into your work orders in MaintainX.

Main Unit Removal

Preparation

Ensure the unit is powered off

Gather necessary tools (screwdriver, soldering iron)

Main Unit Removal Steps

Unsolder the points

Remove screws and side panel

Remove the MAIN UNIT from the chassis

Post Removal Check

Check for any remaining connections to the chassis

Run this procedure

Front Panel Removal

Antenna Connector and Knobs Removal

Remove the following components

Chassis Preparation

Remove the following from the bottom of the CHASSIS

Lift the bottom of the CHASSIS up in the direction of the arrow

Front Unit Disconnection

Disconnect the flat cable from the front unit J501

Ensure the flat cable and connector are not damaged during disassembly

Run this procedure
