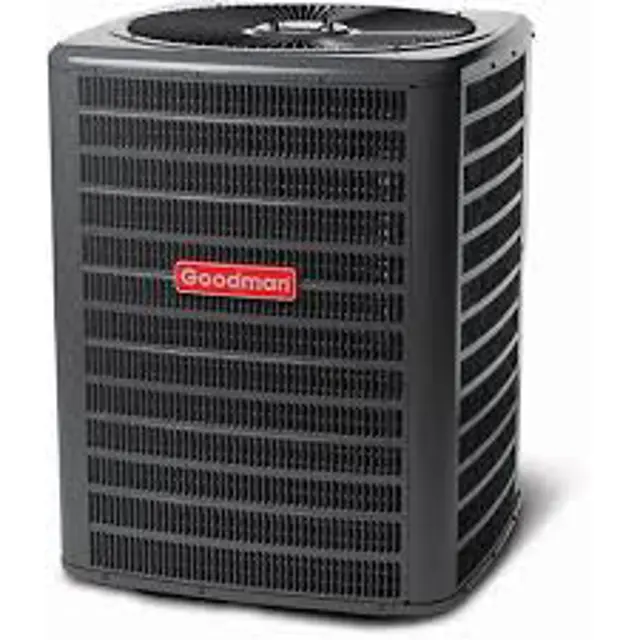

Goodman Condensing Unit GSX130241A

Goodman Condensing Unit GSX130241A

Create an account to install this asset package.

Maintenance Plans for Goodman Condensing Unit Model GSX130241A

Integrate maintenance plans directly into your work orders in MaintainX.

Resistance Check

Check mark

Safety Warning

Check mark

Discharge capacitor and remove wire leads

Check mark

Set an ohmmeter on its highest ohm scale and connect the leads to the capacitor

Check mark

Check capacitor condition

Check mark

Post inspection cleanup

Check mark

Clean the area

Check mark

Dispose of waste

Run this procedureArrow right

Reversing Valve And Solenoid Check

Check mark

Initial System Check

Check mark

Start the system and switch operation from COOLING to HEATING cycle.

Check mark

Did the valve change its position?

Check mark

Voltage Testing at Valve Coil Terminals

Check mark

Test the voltage (24V) at the valve coil terminals while the system is on the COOLING cycle.

Check mark

Is voltage registered at the coil terminals?

Check mark

Thermostat and Wiring Check (Legacy Systems)

Check mark

Check the operation of the thermostat.

Check mark

Check the continuity of the connecting wiring from the 'O' terminal of the thermostat to the unit.

Run this procedureArrow right

Defrost Control Testing

Check mark

Legacy Models

Check mark

Ensure power is ON and unit is not running

Check mark

Jumper defrost thermostat by placing a jumper wire across the terminals 'DFT' and 'R'/'R-DFT' at defrost control board

Check mark

Connect jumper across test pins on defrost control board

Check mark

Set thermostat to call for heating. System should go into defrost within 21 seconds

Check mark

Immediately remove jumper from test pins

Check mark

Check for voltage across terminals 'C & O'. Meter should read 24 volts

Check mark

Check for voltage across fan terminals DF1 and DF2 on the board. You should read line voltage (208-230 VAC) indicating the relay is open in the defrost mode

Check mark

Check for voltage across 'W'/'W2' & 'C' terminals on the board. You should read 24 volts

Run this procedureArrow right

Fan And Blower Motor Check

Check mark

PSC Motors Check

Check mark

Remove the motor leads from its respective connection points and capacitor (if applicable).

Check mark

Check the continuity between each of the motor leads.

Check mark

Touch one probe of the ohmmeter to the motor frame (ground) and the other probe in turn to each lead.

Check mark

Do the windings test continuous and no reading is obtained from lead to ground?

Check mark

ECM Motors Check

Check mark

Disconnect the 5-pin connector from the motor.

Check mark

Check for line voltage at terminals #4 & #5 at the power connector using a volt meter.

Check mark

Is line voltage present at terminals #4 & #5?

Run this procedureArrow right

3-Phase Scroll Compressor Rotation Check

Check mark

Pressure Verification

Check mark

Install gauges on the compressor

Check mark

Verify that the suction pressure drops

Check mark

Verify that the discharge pressure increases

Check mark

Sound Level Check

Check mark

Listen for normal compressor sound levels

Check mark

Describe any unusual sound levels observed

Check mark

Amp Draw Verification

Check mark

Record the amp draw from tabulated values

Run this procedureArrow right
