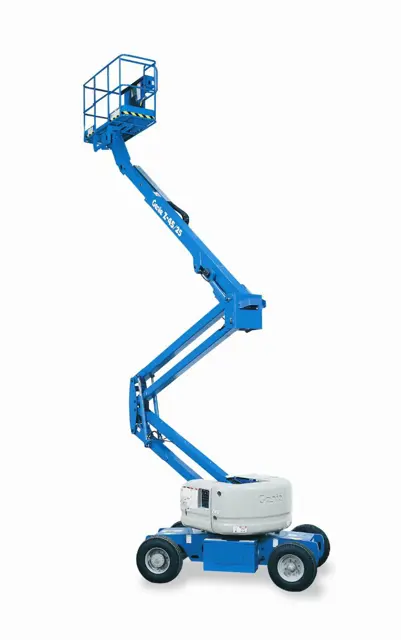

The Genie Articulated Boom Lift Z-45/25 IC is a versatile and reliable aerial work platform designed for efficient operation in various industrial applications. With its robust construction and advanced safety features, this boom lift ensures optimal performance and productivity on job sites. Ideal for both indoor and outdoor use, it provides exceptional reach and maneuverability.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Genie Articulated Boom Lift Z-45/25 IC

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Genie Articulated Boom Lift Z-45/25 IC

Create an account to install this asset package.

Maintenance Plans for Genie Articulated Boom Lift Model Z-45/25 IC

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Deutz Engine Maintanance

- Check / clean the oil cooler and cooling fins - Deutz D2011 and D436 Models

- Replace Engine oil and filter

- Replace Air filter

- Check/adjust Valve clearance - Test/add Engine coolant

- Inspect Air intake pipes

- Inspect V-belts

- Replace Fuel filter / separator;

Run this procedure

50 Hourly Perkins Engine Maintanance

- Clean Air filter discharge valve

- Check for leaks Oil, fuel and coolant systems

- Inspect/adjust/replace Alternator belt

- Check/Add Coolant level

- Check Oil level

- DrainFuel system filter/water separator

- Check/Drain Engine air precleaner

- Check Battery electrolyte level

- Test/Add Cooling system supplement additive

Run this procedure

1 Daily GM 3.0L Engine Maintanance

- Clean radiator

- Drain/clean LPG vaporizer

- Clean/replace air cleaner element

- Replace engine oil and filter

- Replace fuel filter

- Replace air filter

- Replace distributor cap

- Replace spark plug wires;

Run this procedure

2000 Hourly Hydraulic Oil Maintenance

- Test or Replace the Hydraulic Oil

Replacement or testing of the hydraulic oil is essential for good machine performance and service life. Dirty oil and a clogged suction strainer or hydraulic filters may cause the machine to perform poorly and continued use may cause component damage. Extremely dirty conditions may require oil changes to be performed more frequently

Note: Before replacing the hydraulic oil, the oil may be tested by an oil distributor for specific levels of contamination to verify that changing the oil is necessary. If the hydraulic oil is not replaced at the 2000 hour inspection, test the oil quarterly. Replace the oil when it fails the test

Note: When removing a hose assembly or fitting, the O-ring (if equipped) on the fitting and/or hose end must be replaced. All connections must be torqued to specification during installation. Refer to Specifications, Hydraulic Hose and Fitting Torque Specifications

Testing the oil:

Complete the hydraulic oil testing with an oil distributor

If the hydraulic oil passes testing at the 2000 hour maintenance interval, the oil must be tested every quarter by an oil distributor until the oil fails the test and is replaced

If the hydraulic oil fails testing at the 2000 hour maintenance interval, the oil must be replaced

After the oil has been replaced, continue the scheduled quarterly maintenance inspection

Run this procedure

250 Hourly Deutz Engine Maintanance

- Check Oil level

- Check Coolant level

- Inspect/drain Oil, fuel and coolant systems - check for leaks Fuel system filter/water separator

- Clean Air filter discharge valve

- Inspect Exhaust system

- Check / clean the oil cooler and cooling fins - Deutz D2011 and D436 Models

- Replace Engine oil and filter

- Replace Air filter
