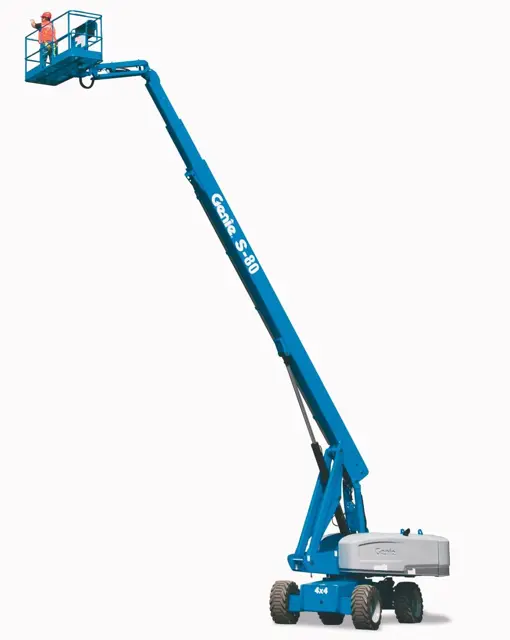

Genie Articulated Boom Lift S-80 XC

- Check for leaks Oil, fuel and coolant systems

- Replace engine oil and filter

- Clean/replace air cleaner element

- Check electrical wiring for chafing or damage

- Test the Turntable Level Sensor - Z-135/70, ZX-135/70, SX-105 XC, SX-125 XC, SX-135 XC, SX-150 and SX-180

A properly functioning level sensor (SCON) is essential to safe machine operation. The ECM at the ground controls (CON) monitors the position and angle of the machine using the signal from the level sensor. The level sensor signal is used to control the maximum working height of the primary and secondary booms

Note: A digital level will be required to perform this procedure

Note: A kit is available through Genie Product Support (Genie part number 58351). This kit includes a digital level with a magnetic base and cable harnesses

Note: A properly calibrated digital level is essential to proper machine calibration. Refer to the manufactures calibration information

Note: Use the following chart to identify the description of each LCD screen control button used in this procedure

Note: Perform this procedure with the booms in the fully stowed position and the axles fully extended

1. Place the machine on a firm surface that has a side slope greater than 2° (6.5 inches / 16.5 cm) but less than 5° (16 inches / 40.6 cm)

2. Place a digital level that has been calibrated to gravity on the X axis of the turntable

Test the Alarm Package (if equipped). Note: The alarms and beacon will operate with the engine running or not running.

Turn the key switch to ground control and pull out the red Emergency Stop button to the on position at both ground and platform controls. Did the alarm sound twice and the flashing beacon turn on and flash?

Activate the boom down function, hold for a moment and then release it. Did the descent alarm sound when the down function is activated?

Turn the key switch to platform controls. Is the flashing beacon on and flashing?

Press down the foot switch. Activate the boom down function, hold for a moment and then release it. Did the descent alarm sound when the down function is activated?

Press down the foot switch. Move the drive control handle off center, hold for a moment and then release it. Move the drive control handle off center in the opposite direction, hold for a moment and then release it. Did the travel alarm sound when the drive control handle is moved off center in either direction?

Sign off on the alarm package test

Clean/replace air cleaner element

Sign off on the daily engine maintenance

- Inspect and Adjust the Boom Extend/Retract Cables

Genie specifications require that this procedure be performed quarterly for the first year of ownership or after the boom extend or retract cables have been replaced

After the first year this quarterly inspection is not required. Refer to the Annual Inspection procedure appropriate for your machine

Manufacturers specifications require that this procedure be performed by personnel that are competent in cable / wire rope inspection

Note: Additional or more frequent inspections may be required due to the following:

• exposed to hostile or corrosive environmental conditions
