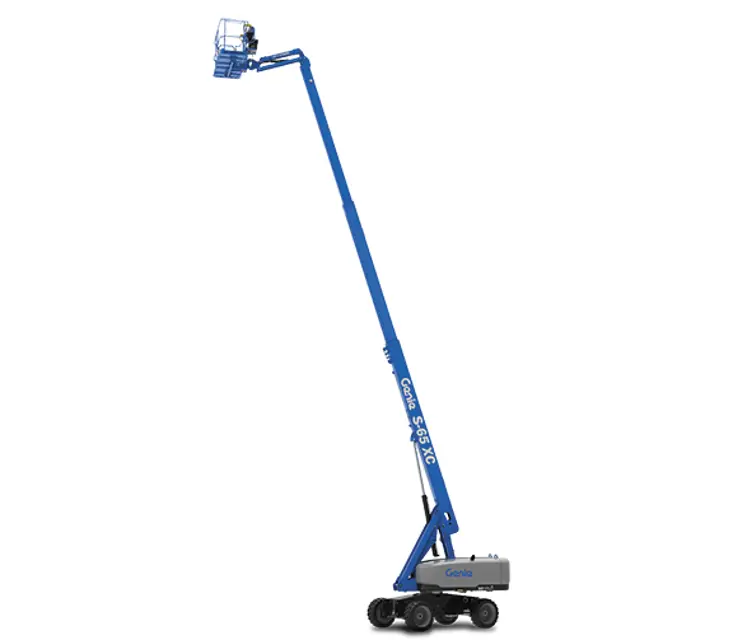

Genie Articulated Boom Lift S-65

Warning: This procedure should be performed with the boom fully retracted and in the stowed position and with the machine on a firm, level surface

All weight, tools, accessories and equipment removed from the platform

Key switch turned to ground control and red Emergency Stop button pulled out to the on position at both ground and platform controls

Test weight of 600 lbs / 272kg placed in the center of the platform and secured

Unrestricted range of motion indicator light is on at the ground controls

Restricted range of motion light is on at the ground controls

Primary boom fully extended and retracted

Additional 100 lbs / 45kg added to the platform

Restricted range of motion indicator light is on at the ground controls

- Test the Safety Envelope Limit Switches, Z-135/70, ZX-135/70, SX-105 XC, SX-125 XC, SX-135 XC, SX-150 and SX-180 Models

Testing the machine envelope safety limit switches is critical to safe machine operation. If the boom is allowed to operate when a safety switch is not functioning correctly, the machine stability could be compromised and may tip over

Note: Perform this procedure with the boom in the stowed position

Note: Perform this procedure with the axles extended

Note: Two people will be required to perform this procedure

Note: Use the following chart to identify the description of each LCD screen control button used in this procedure

Z-135/70 and ZX-135/70 Models:

Secondary Boom #1 Retracted Safety Limit Switch, LSS1RS

1. Working at the platform end of the turntable, support and secure the lower turntable riser end cover to a suitable lifting device

Sign off on the daily maintenance

Check for leaks, damage or deterioration Oil, coolant, fuel, exhaust and vacuum hoses

Check for chafing or damage Electrical wiring

Clean/Adjust/Replace Spark plugs

Tighten/Replace Loose or missing fasteners

- Clean Air filter discharge valve

- Check for leaks Oil, fuel and coolant systems

- Inspect/adjust/replace Alternator belt

- DrainFuel system filter/water separator

- Check/Drain Engine air precleaner

- Check Battery electrolyte level

- Test/Add Cooling system supplement additive
