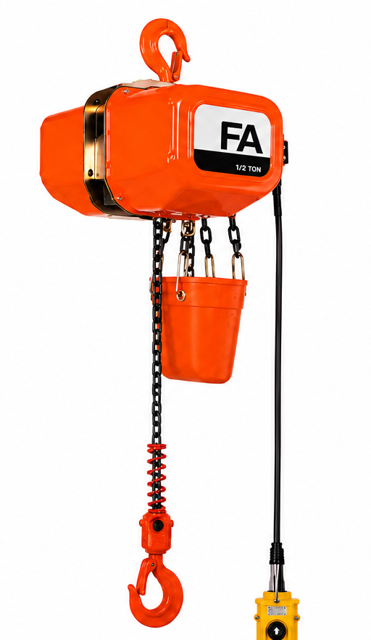

ELEPHANT CHAIN BLOCK Chain Hoist FA-1S
Create an account to install this asset package.
Maintenance Plans for ELEPHANT CHAIN BLOCK Chain Hoist Model FA-1S
Integrate maintenance plans directly into your work orders in MaintainX.
1 Monthly Chain Hoist Inspection
Safety Precautions
Ensure the power source is turned off before maintenance.
Confirm the electric chain hoist is unloaded.
Set up a warning plate indicating 'Under Inspection'.
Ensure only authorized specialists perform the inspection.
Inspection of Electric Chain Hoist Functions
Do all the important functions of the electric chain hoist operate normally?
Is there degradation in any of the essential parts beyond the acceptable limit?
Power Supply and Support Structure Check
1 Yearly Chain Hoist Inspection
Safety Precautions
Ensure the power source is turned off before maintenance, inspection, or repair.
Confirm the electric chain hoist is unloaded before starting inspection.
Set up a warning plate indicating 'Under Inspection' before starting.
Ensure only authorized specialists perform the maintenance, inspection, or repair.
Inspection Preparation
Ensure no modifications have been made to the electric chain hoist and its accessories.
Verify that only genuine parts are used in the electric chain hoist.
Ensure no shortening or lengthening of the load chain has been done.
Chain Hoist Trolley Check
Pre-Inspection Safety Measures
Switch OFF the power source before maintenance, inspection, and repair work.
Ensure maintenance, inspection, and repair work is done by persons with specialized knowledge or a dealer.
Ensure non-loading condition (hoisting no load) during maintenance, inspection, and repair.
Is there any abnormality found during maintenance and inspection?
Inspection Preparation
Follow the proper inspection method for safe operation of the electric chain hoist.
Switch OFF the power source and confirm the safety of the surrounding area before inspection.
Ensure the electric chain hoist is on the ground for overhaul.
1 Daily Chain Hoist Pre-Operational Check
Safety Precautions
Ensure no modifications are made to the electric chain hoist and its accessories.
Use only genuine parts made by the manufacturer.
Avoid shortening or lengthening the load chain.
Turn off the power source before maintenance, inspection, or repair.
Ensure only authorized specialists perform maintenance, inspection, or repair.
Perform maintenance, inspection, or repair with the hoist unloaded.
Repair any disorder found during maintenance or inspection before re-operating the hoist.
Set up a warning plate indicating 'Under working' or similar during maintenance, inspection, or repair.
Chain Hosit Chain Check
Pre-Inspection Safety Measures
Switch OFF the power source before maintenance.
Ensure maintenance is performed by qualified personnel.
Confirm non-loading condition for maintenance.
Do not use the hoist if any abnormality is found.
Pre-Inspection Preparation
Follow the proper inspection method for safe operation.
Ensure the power source is OFF and the surrounding area is safe.
Place the hoist on the ground for overhaul.
