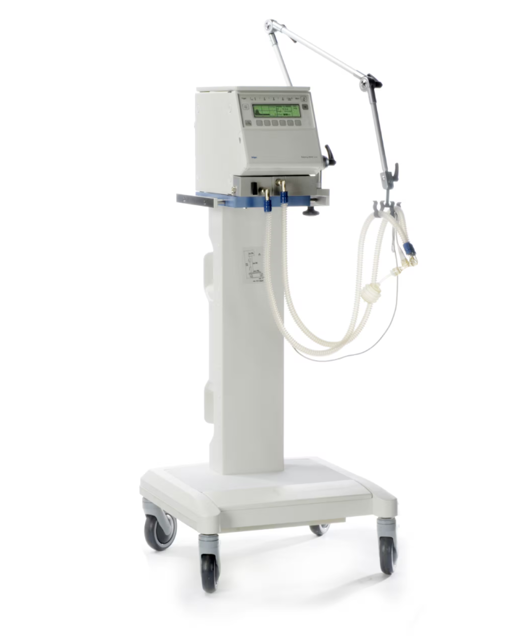

DRAEGER Intensive Care Ventilator Babylog 8000 SC

Device Assembly and Initialization

Include the tubing system without the humidifier

Note the software version and operating hours

Is the communication conversion kit present?

Switch off the Babylog 8000/Babylog 8000 plus/Babylog 8000 SC

Check the opening pressure for Babylog 8000 SW 2.0 and SW 3.00

Is the opening pressure between –1.5 mbar to 0 mbar?

Check the opening pressure for Babylog 8000 SW 2.02, SW 3.02, SW 4.n without HFV

Is the opening pressure between –4 mbar to 0 mbar?

Check the opening pressure for Babylog 8000 SW 4.n with HFV

Is the opening pressure between –4 to –2 mbar?

Select inspiratory flows from the list menu

Wait approximately 1 minute between setting and measurement of flow values (< 2 L/min)

Is the alarm 'FiO2 deviation' allowed to occur if no value is set?

Ensure the Babylog 8000/Babylog 8000 plus/Babylog 8000 SC is switched off

Identify the safety valve variant

Testing Procedure for Variant A

Measure the opening pressure for Variant A

Is the opening pressure within 25 ±5 mbar?

Testing Procedure for Variant B

Adjust Parameters on Babylog Devices

Adjust the following parameters on the Babylog 8000/ Babylog 8000 plus/Babylog 8000 SC

Switch off occurring alarms and warnings by pressing the 'Reset/Check' key

Press and hold the manual inspiration key

Enter the pressure achieved during the 5-second test

Was a pressure of at least 75 mbar achieved?
