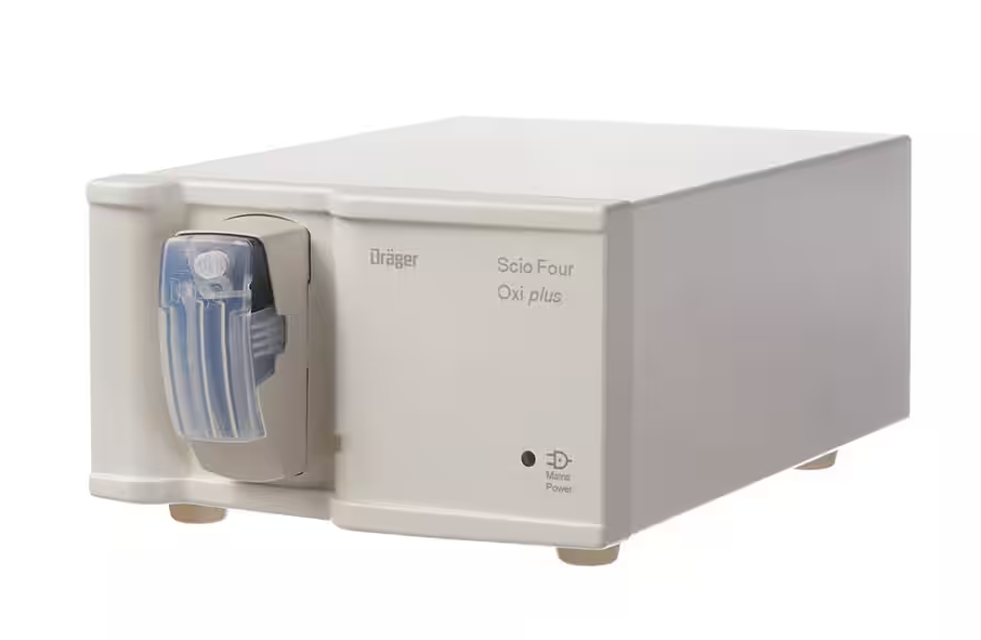

DRAEGER Gas Measurement Module Scio Four Oxi
Create an account to install this asset package.
Maintenance Plans for DRAEGER Gas Measurement Module Model Scio Four Oxi
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Fan Filter Mat / Bacterial Filter Change
Safety Precautions
Disconnect all electrical connectors from power supply
Ensure no power is running through the device
Fan Filter Mat Exchange
Open the enclosure of the device
Remove the old fan filter mat
Install the new fan filter mat
Verify the fan filter mat is securely in place
Bacterial Filter Exchange
2 Yearly O-Ring Change
WARNING: Risk of faulty components
Describe any signs of wear or material fatigue observed during inspection
WARNING: Risk of electric shock
Disconnect all electrical connectors from power supply before opening the enclosure
O-Ring Replacement
Remove the water trap holder
Exchange the O-rings on the water trap holder
Inspect the new O-rings for proper installation
12 Monthly Gas Measurement Module Inspection
Pre-Inspection Preparation
Ensure the gas analyzer is in operation mode for more than 10 minutes before checking accuracy.
Document Verification
Check that instructions for use are available in the correct version.
Visual and Physical Inspection
Verify that the gas analyzer is in good condition
Electrical Safety Check
Check the electrical safety according to IEC 62353 with test equipment configured to 200 mA (DC).
Gas Measurement Accuracy Check
1 Monthly Fan Filter Mat Cleaning
Fan Filter Mat Cleaning
Locate the fan at the rear of the gas analyzer.
Remove the fan filter mat from its holder.
Vacuum up any accumulation of dust on the filter mat as well as on and inside the fan port.
Insert the cleaned filter mat or a new filter mat.
Post-Cleaning Verification
Is the fan operating normally after cleaning?
Was the cleaning process completed successfully?
Documentation
Parts for DRAEGER Gas Measurement Module Scio Four Oxi
Access the parts list for your equipment in MaintainX.
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
