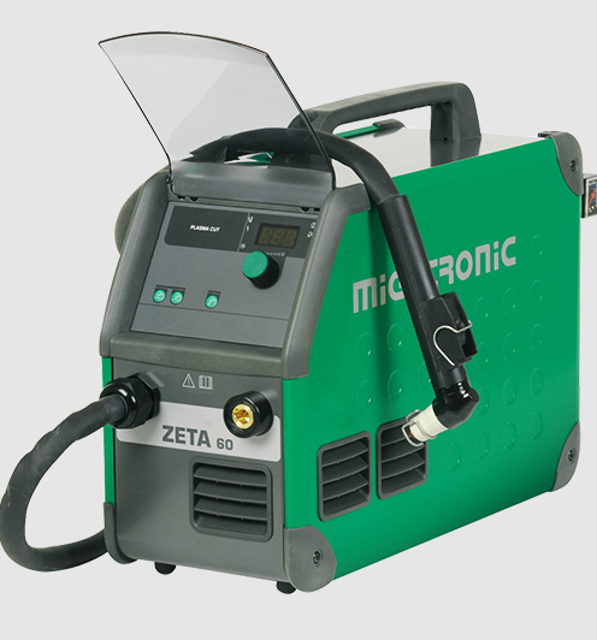

Migatronic Plasma Cutting Machine ZETA 60
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Migatronic Plasma Cutting Machine ZETA 60
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Migatronic Plasma Cutting Machine ZETA 60
Create an account to install this asset package.
Maintenance Plans for Migatronic Plasma Cutting Machine Model ZETA 60
Integrate maintenance plans directly into your work orders in MaintainX.
Plasma Hose And Cutting Head Maintenance
Inspection
Examine cutting head for damages
Inspect plasma hose for damages on the cover
Nozzle Maintenance
Check nozzle for metal spatter
Clean nozzle with a wire brush
Inspect nozzle for wear and tear
Is the nozzle worn out and needs replacement?
Electrode Maintenance
Water Separator Maintenance
Empty and Clean Water Separator
Choose method to empty the water separator
Was the water separator emptied successfully?
Inspect and Clean Electrode and Nozzle
Is there verdigris or short circuit on the electrode or nozzle?
Clean the end of the electrode and inside of the nozzle with fine sandpaper if impurities or moisture are present
Post Maintenance Check
Is the pilot arc starting correctly after maintenance?
Describe any issues encountered during maintenance
1 Yearly Plasma Cutting Machine Maintenance
Water Separator Maintenance
Press the air escape valve to empty the water separator when the compressed air is on
Screw off the glass cap and clean it
Electrode and Nozzle Maintenance
Check for issues
Clean the end of the electrode with fine sandpaper
Clean the inside of the nozzle with fine sandpaper
Air Pressure Adjustment
Machine Startup
Switch ON the machine
Air Pressure Adjustment
Push the “air test” button on the front panel
Check the air pressure on the gauge
Adjust the air pressure to 3.5 bar
Is the air pressure adjusted correctly?
Release the pushbutton
Flow Control
