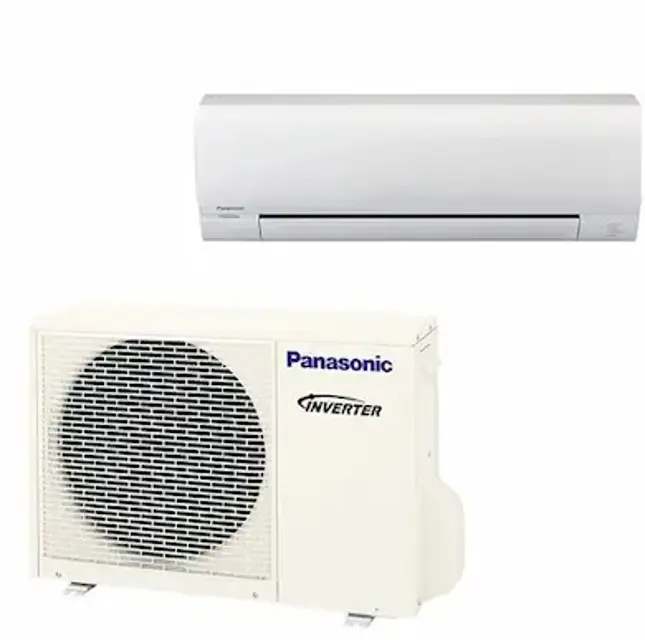

Panasonic Air Conditioner CU-KE36NKU

Open the front panel until it is nearly horizontal.

Grasp the sections near the front panel arms on both sides.

Remove the panel by pushing the arms towards the outside while pulling the panel towards you.

If the front panel is difficult to remove, did you lift it up slightly and disengage the arms?

Grasp the sections near the front panel arms on both sides and hold the front panel nearly horizontal.

Push the arm shafts towards the outside to contact the top of the indentations on both sides.

Push firmly until the arm shafts click into place.

Adjust vertical vanes to the left or right using hands

Are the vertical vanes in the front position during high humidity?

Is the remote controller turned on?

Select the flap function using the FLAP button

Is the flap pointed down during cooling operation?

Use the FLAP button on the remote controller to adjust the flap position

Insert the top of the filter into the unit

Secure the bottom of the filter with the protrusions on the unit

Push the center of the front panel

Press both edges of the panel until it clicks into place

Clean the casing and grille with a vacuum cleaner brush or a clean, soft cloth

Use a clean cloth moistened with a mild liquid detergent for stains

Ensure vanes are not forced out of place during cleaning

Avoid using solvents or harsh chemicals

Open the front panel by pulling forward and up

Lift the filter slightly to disengage from protrusions

Remove the filter by pulling downward

Use a vacuum cleaner to remove light dust

Wash the filter in lukewarm, soapy water if sticky dust is present

Rinse the filter in clean water
