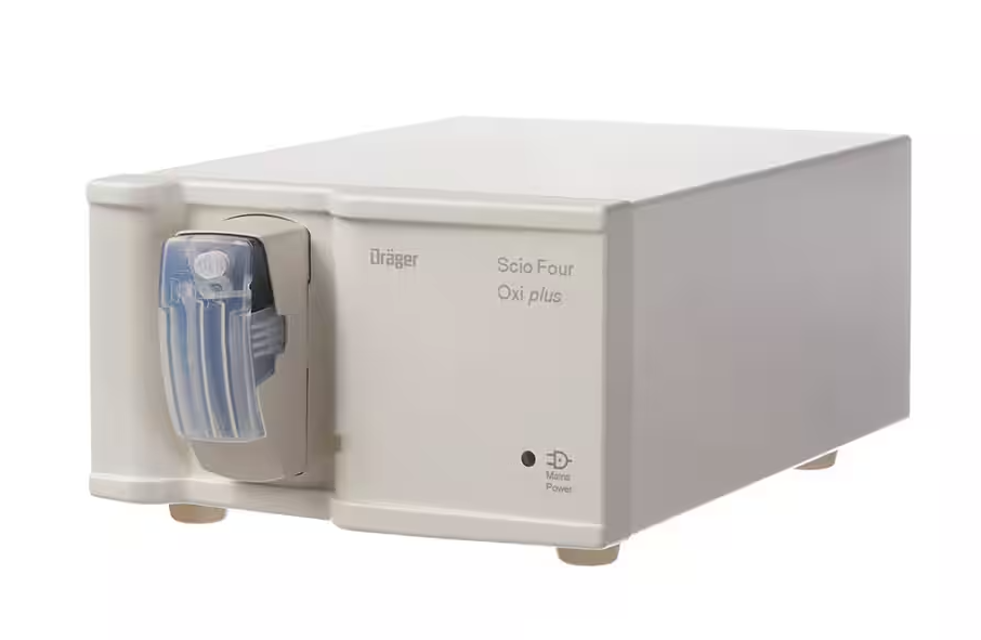

DRAEGER Gas Measurement Module Scio Four Plus
Create an account to install this asset package.
Maintenance Plans for DRAEGER Gas Measurement Module Model Scio Four Plus
Integrate maintenance plans directly into your work orders in MaintainX.
1 Monthly Fan Filter Mat Cleaning
Locate the fan at the rear of the gas analyzer
Remove the fan filter mat from its holder
Vacuum up any accumulation of dust on the filter mat as well as on and inside the fan port
Insert the cleaned filter mat or a new filter mat
Post-cleaning verification
Ensure the fan is operating correctly after cleaning
Check for any unusual noises from the fan
Completion
Record any issues encountered during the cleaning process
12 Monthly Gas Measurement Module Inspection
Pre-Inspection Preparation
Ensure the gas analyzer is in operation mode for more than 10 minutes before checking accuracy.
Document Verification
Check that instructions for use are available in the correct version.
Visual and Functional Inspection
Verify that the gas analyzer is in good condition
Electrical Safety Check
Check the electrical safety according to IEC 62353.
Gas Measurement Accuracy Check
1 Yearly Fan Filter Mat / Bacterial Filter Change
Safety Precautions
Disconnect all electrical connectors from power supply
Ensure no power is running through the device
Fan Filter Mat Exchange
Open the enclosure of the device
Remove the old fan filter mat
Install the new fan filter mat
Close the enclosure of the device
Bacterial Filter Exchange
2 Yearly O-Ring Change
Safety Precautions
Disconnect all electrical connectors from power supply
Ensure no power is running through the device
Inspection and Preventive Maintenance
Inspect components for wear or material fatigue
Is there any visible damage to the components?
O-Ring Replacement
Remove old O-rings from the water trap holder
Install new O-rings on the water trap holder
Parts for DRAEGER Gas Measurement Module Scio Four Plus
Access the parts list for your equipment in MaintainX.
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
Power Supply, 100 To 240 Vac, 50/60 Hz
6874204
Waterlock2
6872130
Sample Line (Set Of 10)
8290286
Sample Gas Return Kit
M32692
Sample Gas Scavenging Hose
6873252
