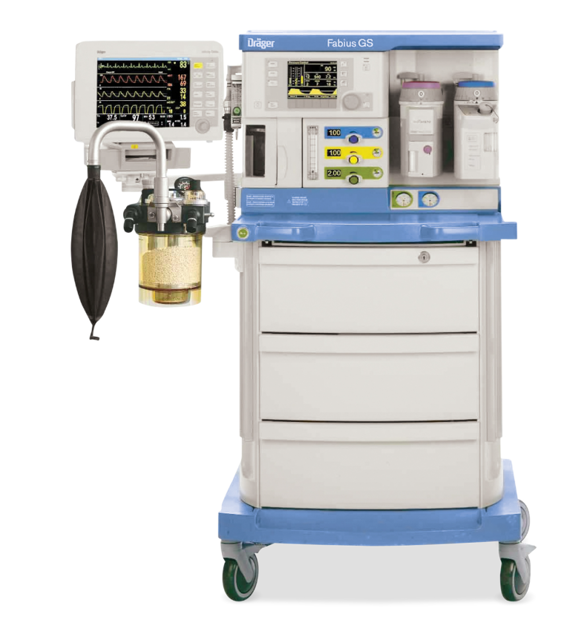

DRAEGER Inhalation Anesthesia Machine Fabius GS
Create an account to install this asset package.
Maintenance Plans for DRAEGER Inhalation Anesthesia Machine Model Fabius GS
Integrate maintenance plans directly into your work orders in MaintainX.
System Leak Testing
Preparation
Seal off the sampling tube from the Y-piece
Plug the Y-piece
Flip the Man/Spont valve to 'Man' with pressure set to 40 to 50 mbar
Initiate Leak Test
Activate the O2 flush to increase system pressure to 15-30 mbar
Monitor the airway pressure
Pressure Monitoring
Is the airway pressure within range?
Patient Leak Testing
Preparation
Prepare the machine for leak testing
Seal off the sampling tube from the Y-piece for sidestream monitoring
Initiate Leak Test
Open the leak test menu screen
Initiate the leak test
Piston Position Adjustment
Is the piston above the desired starting position?
Servo the piston downward if above the starting position
Parts for DRAEGER Inhalation Anesthesia Machine Fabius GS
Access the parts list for your equipment in MaintainX.
Ags-Scavanger Hose 0,5M
M35015
Ags-Scavanger Hose 1,5M
M33297
Ags-Scavanger Hose 3M
M33298
Ags-Scavanger Hose 5M
M33299
Agss Probe/Straight-Type1/ En
G60580
Ags-Scavanger Hose 0,5M
M35015
Ags-Scavanger Hose 1,5M
M33297
Ags-Scavanger Hose 3M
M33298
Ags-Scavanger Hose 5M
M33299
Agss Probe/Straight-Type1/ En
G60580
Ags-Scavanger Hose 0,5M
M35015
Ags-Scavanger Hose 1,5M
M33297
Ags-Scavanger Hose 3M
M33298
Ags-Scavanger Hose 5M
M33299
Agss Probe/Straight-Type1/ En
G60580
