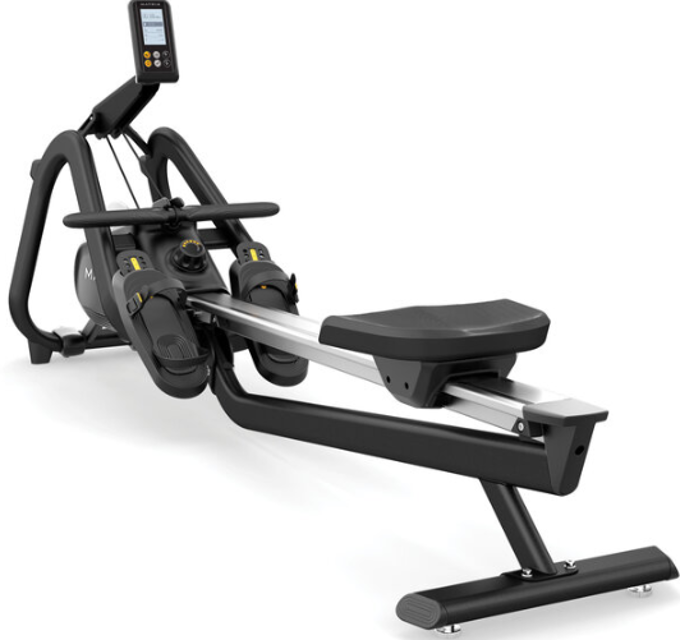

Matrix Rowing Machine ROWER-02

Refer to 9.3.1 and 9.3.2 to remove the covers.

Turn the cover to left and it will be removed (Figure B).

Tension Knob and Frame Cover Removal

Remove the 2 screws holding tension knob to the frame (Figure C).

Remove the tension knob (Figure D).

Remove the 4 screws holding front frame cover to the frame (Figure E).

Check for any damaged, worn, or broken parts

Ensure all labels and nameplates are intact and readable

Are there any loose fasteners or unusual noises?

Clean all exposed surfaces with a damp, soft cloth and mild detergent

Keep the display console free of fingerprints and salt build-up

Vacuum the floor underneath the unit to remove dust and dirt

Check for dust inside flywheel using a flashlight

Ensure no equipment is damaged or has worn or broken parts

Use only replacement parts supplied by local MATRIX dealer

Label and Nameplate Maintenance

Ensure all labels and nameplates are maintained and not removed

Are all labels readable and present?

Inspect equipment at regular intervals

Is the person performing maintenance qualified?

Ensure the belt is on the generator plastic wheel (Figure C)

Position the screw at the left side of the hole to ensure the belt is tight (Figure D)

Remove the Left/Right spiral spring as outlined in Section 9.5.

Remove the belt (Figure A). Note: This is a flexonic belt. Remove the flexonic belt by walking it off the side of the pulley.

Remove the rope rubber (Figure C).

Remove the 6 screws holding Left/Right belt pulley set to the frame (Figure D).

When the belt pulley set is fixed, put the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure E).

If there’s no belt installation tool, use 3 pcs cable tie to fix the pulley and belt (Figure F).
