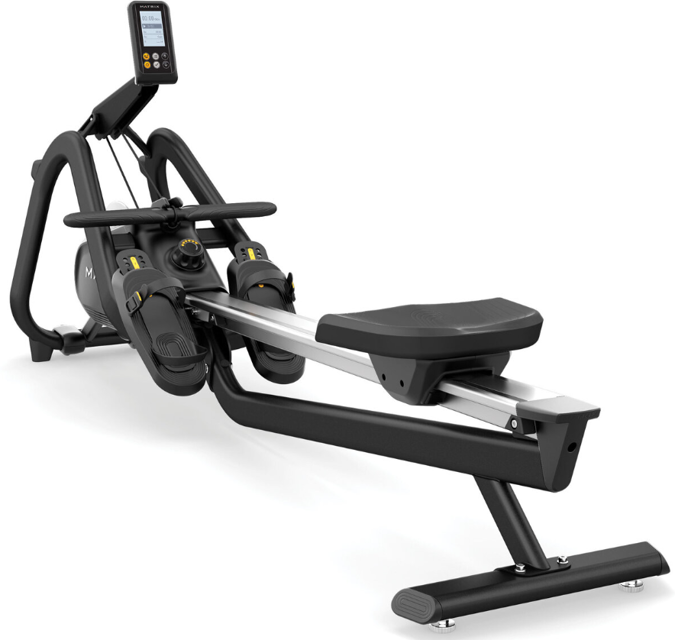

Matrix Matrix Rowing Machine Rower

Ensure no equipment is damaged or has worn or broken parts

Use only replacement parts supplied by local MATRIX dealer

Label and Nameplate Maintenance

Check that all labels and nameplates are intact and readable

Contact MATRIX dealer for replacement if labels are unreadable or missing

Inspect equipment at regular intervals for preventative maintenance

Ensure personnel performing maintenance are qualified

Refer to 9.3.1 and 9.3.2 to remove the covers.

Turn the cover to left and it will be removed (Figure B).

Tension Knob and Frame Cover Removal

Remove the 2 screws holding tension knob to the frame (Figure C).

Remove the tension knob (Figure D).

Remove the 4 screws holding front frame cover to the frame (Figure E).

Remove the screws holding rail set to the frame

Remove the screw holding end cover to the rail

Remove the screws holding Receiver Set to the rail

Tie the wire on damaged Receiver Set

Take off the damaged Receiver Set

Remove the screws holding the coverts to the frame

Remove the 2 screws holding the ECB to the frame (Figure D)

Remove the tension wire (Figure E)

Is the flywheel in the middle of the 2 magnets before fixing the ECB screws? (Figure F)

Install the tension wire (Figure G)

Ensure the belt is on the generator plastic wheel (Figure C)

Position the screw at the left side of the hole to ensure the belt is tight (Figure D)
