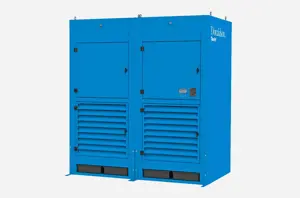

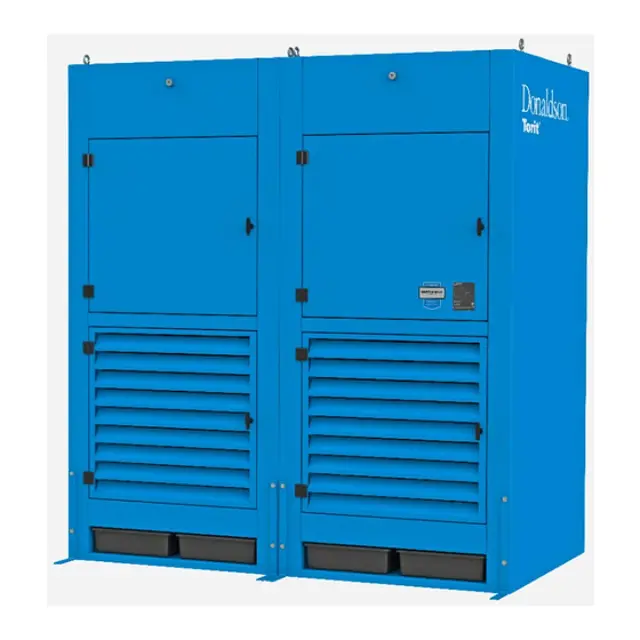

Donaldson Donaldson Cartridge Dust Collector DWS 4-2 DWS 4-2

Electrical work must be performed by a qualified electrician and comply with all applicable national and local codes.

Turn power off and lock out electrical power sources before performing service or maintenance work.

Do not install in classified hazardous atmospheres without an enclosure rated for the application.

This light fixture uses a wrap-around lens that is not fastened to the light housing by fasteners or latches.

To remove the lens: Lift lens one side at a time up and away from the housing.

To replace the bulbs: Rotate and remove from the rotary-lock lamp holders.

Replace with 40-watt, 48-inch long fluorescent bulbs.

Warning: Electrical work must be performed by a qualified electrician and comply with all applicable national and local codes. Turn power off and lock out electrical power sources before performing service or maintenance work. Do not install in classified hazardous atmospheres without an enclosure rated for the application.

The Photohelic combines the functions of a differential pressure gauge and a pressure-based switch. The gauge function measures the pressure difference between the clean and ambient air and provides a visual display of filter condition. The low-pressure tap is located in the clean-air plenum on the back of the cabinet. The pressure-based switch function provides high-pressure ON and low-pressure OFF control of the filter cleaning system.

Choose a convenient, accessible location on or near the unit for mounting that provides the best visual advantage.

Mount the gauge to the remote panel or door using the mounting ring, retaining ring, and four #6-32 x 1 1/4-inch screws. Do not tighten screws. Connect one 1/8-inch NPT x 1/4-inch OD male adapter to the low-pressure port of the gauge. Align the adapter to the 2.375-inch hole in the right-hand side of the mounting bracket. Tighten screws.

Zero and maintain the gauge as directed in the manufacturer’s operating and maintenance instructions provided.

Sign off on the gauge replacement

Warning: Electrical work must be performed by a qualified electrician and comply with all applicable national and local codes.

Turn power off and lock out electrical power sources before performing service or maintenance work.

Do not install in classified hazardous atmospheres without an enclosure rated for the application.

Control panel mounted in a convenient, accessible location

Tubing connected to the low-pressure barbed fitting on the control panel and to the barb fittings on the rear of the power module marked Low

Upload a photo of the control panel wired to the motor and solenoid valves

Blower motor turned on and off for rotation check

To reverse rotation with a three-phase power supply: Turn electrical power off at the source and switch any two leads on the output side of the blower-motor starter.

Compressed-air supply connected following the instructions in Compressed Air Installation

Warning: Electrical work must be performed by a qualified electrician and comply with all applicable national and local codes.

Turn power off and lock out electrical power sources before performing service or maintenance work.

Do not install in classified hazardous atmospheres without an enclosure rated for the application.

Power turned off and locked out?

Motors wired and rotation checked?

Upload a photo of the power module before installation

Acoustic curtain installed to the front of the power module?

Chamber silencer installed to the top of the power module?

Upload a photo of the power module after installation

All personnel instructed on safe use and maintenance procedures?

Electrical service or maintenance work performed by a qualified electrician and comply with all applicable national and local codes?

Power turned off and electrical power sources locked out before performing service or maintenance work?

Compressed air supply turned off and lines bled before performing service or maintenance work?

Compressed-air pressure set below 50 psig to avoid component damage?

All compressed air components sized to meet the maximum system requirements of 60 psig supply pressure?

Compressed-air supply oil and moisture free?

Compressed air lines purged to remove debris before connecting to the unit’s compressed air manifold?
