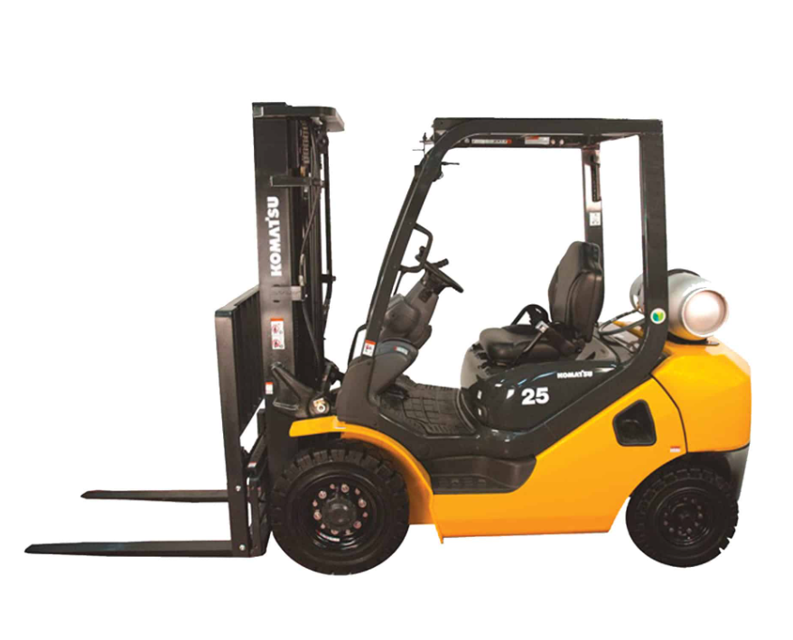

Komatsu Forklift Trucks FG25SHT-16

6.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Check the following by operating the F/R lever:

2. Check transmission for abnormal sound.

3. Check transmission for oil leakage.

Replace the packing if oil stains become oil droplets.

4. Check transmission oil for proper amount level.

Park the truck on flat and even ground surface and check with oil level gauge.

CAUTION: The factory-set adjustments may not be correct for your truck.

Inspect all chains for lubrication.

Inspect all chains for any visible damage.

Inspect the main lift chain adjustment for proper tension and upright position.

Inspect the free lift chain adjustment for proper tension and carriage position.

Inspect for lubrication in the Mast upright channels.

Sign off on the mast inspection

Warning: This maintenance check requires trained personnel with PPE!

Check for deformation, cracks or scratches in the rear axle

Check for play of center pin in the rear axle

Check for clearance of thrust in the rear axle

Check for looseness of cap mounting bolt in the rear axle

Check for shaking, pulling or dragging in the steering wheel

Check for steering force (Control force) in the steering wheel

Check for play at engine idle in the steering wheel

Check for interference between wheel and other part of truck in the steering wheel

9.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:

3.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:
