Hyster-Yale Forklift H50CT
Hyster-Yale Forklift H50CT

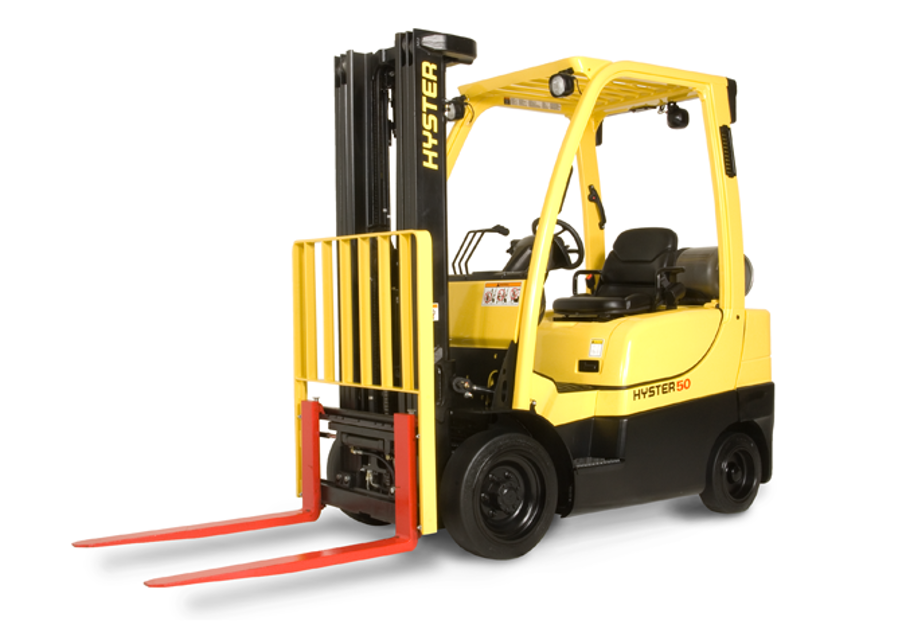

The Hyster-Yale H50CT is a robust forklift designed for industrial applications, offering exceptional lifting capabilities and maneuverability. This model is ideal for warehouses and distribution centers, ensuring efficient material handling and productivity. With its durable construction and reliable performance, the H50CT is a trusted choice for various lifting tasks.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Hyster-Yale Forklift H50CT

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Hyster-Yale Forklift H50CT

Hyster-Yale Forklift H50CT

Create an account to install this asset package.

Maintenance Plans for Hyster-Yale Forklift Model H50CT

Integrate maintenance plans directly into your work orders in MaintainX.

Display Switch Cluster Panel Bezel And Overlay Replacement

Check mark

Removal

Check mark

Insert a small, flat-bladed screwdriver into the top slot on the inner edge of the bezel and pry outward

Check mark

Repeat procedure at the lower slot on the bezel

Check mark

Lift bezel off of Display Switch Cluster

Check mark

Remove overlay from Display Switch Cluster

Check mark

Installation

Check mark

Place new overlay on display panel

Check mark

Install a new bezel by inserting the outer edge in the display

Check mark

Press down the inner edge

Run this procedureArrow right

Power Distribution Module Replacement

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Raise steering column to its highest position, move seat all the way forward, and raise hood for access to PDM and battery.

Check mark

Disconnect the battery.

Check mark

Tag electrical connector prior to disconnect to aid in correct reconnect.

Check mark

Disconnect chassis harness from main power connection terminals on PDM.

Check mark

Remove bolts and PDM from battery tray.

Check mark

Install PDM and bolts onto battery tray. Tighten bolts to 8 N•m (71 lbf in).

Check mark

Connect chassis harness to main power connect terminals on PDM as tagged during removal.

Check mark

Connect the battery. Close the hood. Move the seat and steering column to original positions.

Run this procedureArrow right

Display Switch Cluster Replacement

Check mark

NOTE: The Display Switch Cluster is a non-repairable part. See Parts Manual for replacement part number.

Check mark

Disconnect ground wire

Check mark

Lift up on the steering wheel slightly and pull up on the tilt lever. Fully lower the steering column.

Check mark

Remove upper steering column cover by pulling up on upper steering column cover to release the latches (one on either side), and pulling cover away from steering column.

Check mark

Remove the horn button and disconnect the horn wires.

Check mark

NOTE: A puller tool may be required to remove the steering wheel.

Check mark

Remove the lock nut securing the steering wheel and remove steering wheel from steering column. Take care to not damage the horn wires.

Check mark

Disconnect the Display Switch Cluster harness from the Display Switch Cluster. Remove the four bolts securing the Display Switch Cluster. Slide the display panel off of the steering column.

Check mark

Install Display Switch Cluster onto steering column. Install four bolts to secure panel to steering column and tighten bolts to 19 N•m (168 lbf in).

Run this procedureArrow right

Yanmar Diesel Engine Replacement

Check mark

Removal Procedure

Check mark

ECM for Yanmar engine located on left-hand side of frame?

Check mark

Negative battery cable disconnected?

Check mark

Number of conduit clips removed from wire harness and bracket

Check mark

ECM connector disconnected from ECM?

Check mark

Number of capscrews removed and ECM from bracket

Check mark

Capscrew and bracket removed from frame?

Check mark

Installation Procedure

Check mark

Bracket and capscrew installed on frame?

Run this procedureArrow right

Lights Replacement

Check mark

WORK LIGHTS (FRONT AND REAR)

Check mark

NOTE: This lift truck has an option for LED style work lights. They are non repairable and must be serviced as an assembly. The remove and install procedures are the same as the halogen lights outlined in this section.

Check mark

Remove

Check mark

1. Raise the hood. Disconnect the battery.

Check mark

CAUTION: DO NOT touch the Halogen bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the lift of the lamp. Use clean gloves or lint-free cloth for installation and removal.

Check mark

CAUTION: Clean any dirt or oil, from the lamp surface with alcohol and a lint-free cloth or tissue. Any foreign materials on the bulb surface can cause hot spots on the bulb and result in lamp failure.

Check mark

2. To replace bulb, remove four capscrews and lens assembly. See Figure 31. Replace bulb and install lens assembly and four capscrews.

Check mark

3. To replace work light assembly, disconnect light from overhead guard harness and remove capscrew, washer, nut, and work light from overhead guard. See Figure 31.

Check mark

Install

Run this procedureArrow right
