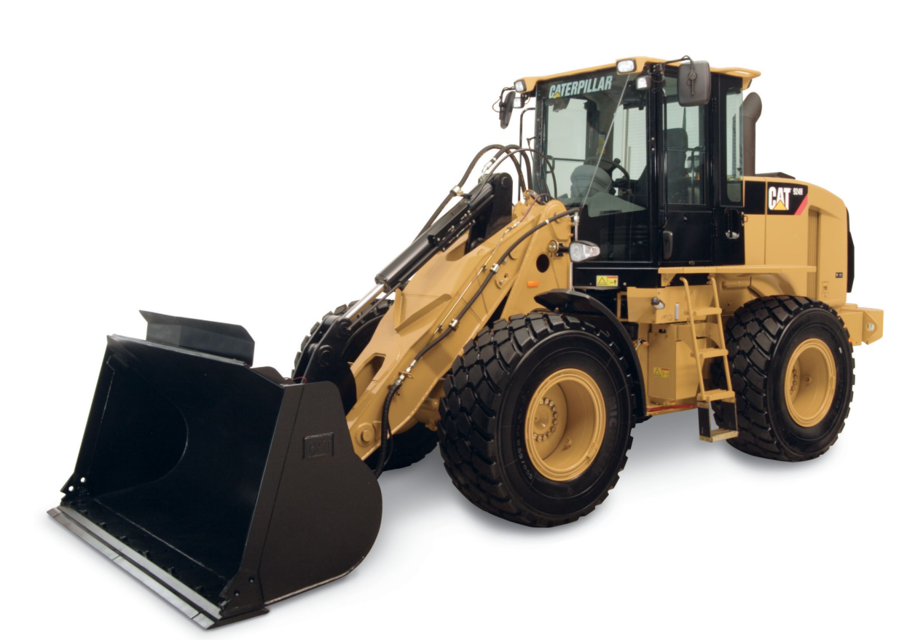

The Caterpillar Wheel Loader 924H is a versatile and powerful piece of industrial equipment designed for heavy-duty applications. Known for its reliability and efficiency, this model excels in material handling and construction tasks, making it an essential asset for any job site.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Caterpillar Wheel Loader 924H

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Caterpillar Wheel Loader 924H

Create an account to install this asset package.

Maintenance Plans for Caterpillar Wheel Loader Model 924H

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly / 6 Monthly Wheel Loader Maintenance

Rollover Protective Structure (ROPS) - Inspect

1. Remove the access covers from both sides of the ROPS.

2. Inspect the ROPS for loose bolts or for damagedbolts. Replace any damaged bolts or missing bolts with original equipment parts only.

Note: Apply oil to all ROPS bolt threads before you install the bolts. Failure to apply oil to the bolt threads can result in improper bolt torque. Tighten the bolts that hold the platform to the frame to a torque of 530 ± 70 N·m (400 ± 50 lb ft). Tighten the bolts that hold the ROPS to the platform to a torque of 460 ± 60 N·m (340 ± 45 lb ft). Once you have torqued all the bolts, torque the bolts again.

3. Operate the machine on a rough surface. Replace the ROPS mounting supports if the ROPS emits a noise. Replace the ROPS mounting supports if the ROPS rattles.

4. Install the access covers.

Do not straighten the ROPS. Do not repair the ROPS by welding reinforcement plates to the ROPS.

Consult your Caterpillar dealer for repair of cracks in any welds, in any castings, or in any metal section of the ROPS.

Transmission Oil - Change

Run this procedure

Initial 500 Hours Wheel Loader Maintenance

Engine Valve Lash - Check

Refer to the Service Manual for the complete adjustment procedure for the engine valve lash.

A qualified mechanic should adjust the engine valve lash because special tools and training are required.

Engine valve lash checked and adjusted?

Mechanic's signature

Run this procedure

50 Hourly / 1 Weekly Wheel Loader Maintenance

Bucket Lower Pivot Bearings - Lubricate

Cab Air Filter - Clean/Replace

Tire Inflation - Check

Sign off on the wheel loader maintenance

Run this procedure

100 Hourly / 2 Weekly Wheel Loader Maintenance

Axle Oscillation Bearings - Lubricate

Apply grease to the remote grease fittings for the trunnion bearings. The grease fittings are located on the left side of the machine near the articulation joint.

Bucket Linkage and Loader Cylinder Bearings - Lubricate

Wipe off the fittings before you apply any lubricant.

Apply lubricant to the grease fittings. The grease fittings are located on each side of the bucket and loader linkage.

Note: The lower bucket pivot bearing needs to be greased at every 50 hour interval.

Steering Cylinder Bearings - Lubricate

924H and 924Hz

Wipe all grease fittings before you apply any lubricant to the grease fittings.

Run this procedure

10 Hourly / 1 Daily Wheel Loader Maintenance

Backup Alarm - Test

Backup Alarm Test Procedure

Bucket Tips - Inspect/Replace
